2SK680A - MOS Field Effect Transistor

Key Features

  • Directly driven by Ics having a 5V power source. Not necessary to consider driving current because of its high input impeance. Has low on-state resistance RDS(on)=1.0ÙMAX. @VGS=4.0V,ID=0.5A RDS(on)=0.70ÙMAX. @VGS=10V,ID=0.5A SOT-89 4.50+0.1 -0.1 1.80+0.1 -0.1 12 3 0.48+0.1 -0.1 0.53+0.1 -0.1 +0.1 2.50 -0.1 +0.1 4.00 -0.1 Unit: mm 1.50+0.1 -0.1 0.44+0.1 -0.1 +0.1 0.80 -0.1 +0.1 2.60 -0.1 3.00+0.1 -0.1 +0.1 0.40 -0.1 1 Gate 11.. SBoauserce 2 Drain 22.. DCroallienctor 333.. GSEmaotuieitrt.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK680A N-Channel MOSFET NEC
2SK680A 30V N-Channel MOSFET VBsemi
2SK680 N-Channel MOSFET NEC
2SK681 N-Channel MOSFET NEC
2SK681A N-Channel MOSFET NEC

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK1133 N-Channel MOSFET
2SK1151S Silicon N-Channel MOSFET
2SK1152S Silicon N-Channel MOSFET
2SK1254S Silicon N-Channel MOSFET
2SK1273 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

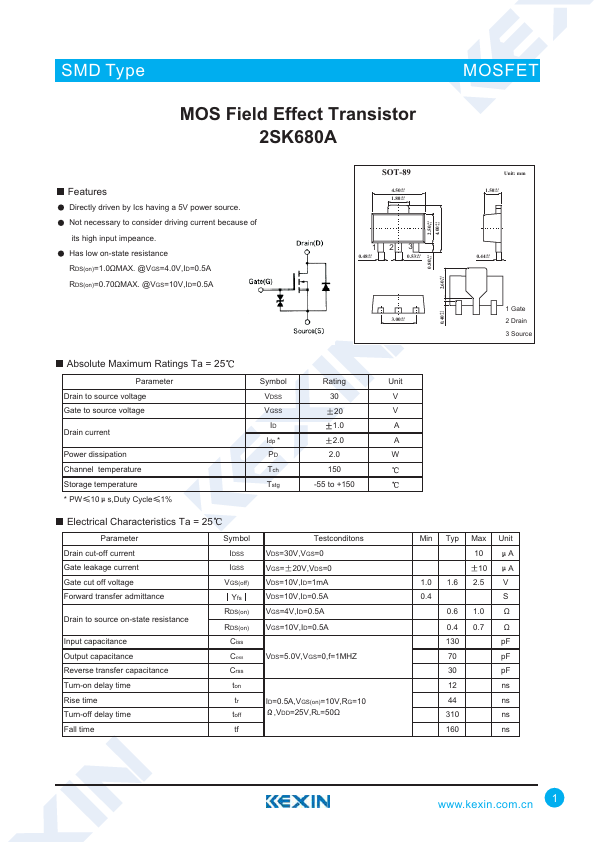

SMD Type MOSFET MOS Field Effect Transistor 2SK680A Features Directly driven by Ics having a 5V power source. Not necessary to consider driving current because of its high input impeance. Has low on-state resistance RDS(on)=1.0ÙMAX. @VGS=4.0V,ID=0.5A RDS(on)=0.70ÙMAX. @VGS=10V,ID=0.5A SOT-89 4.50+0.1 -0.1 1.80+0.1 -0.1 12 3 0.48+0.1 -0.1 0.53+0.1 -0.1 +0.1 2.50 -0.1 +0.1 4.00 -0.1 Unit: mm 1.50+0.1 -0.1 0.44+0.1 -0.1 +0.1 0.80 -0.1 +0.1 2.60 -0.1 3.00+0.1 -0.1 +0.1 0.40 -0.1 1 Gate 11.. SBoauserce 2 Drain 22.. DCroallienctor 333..
