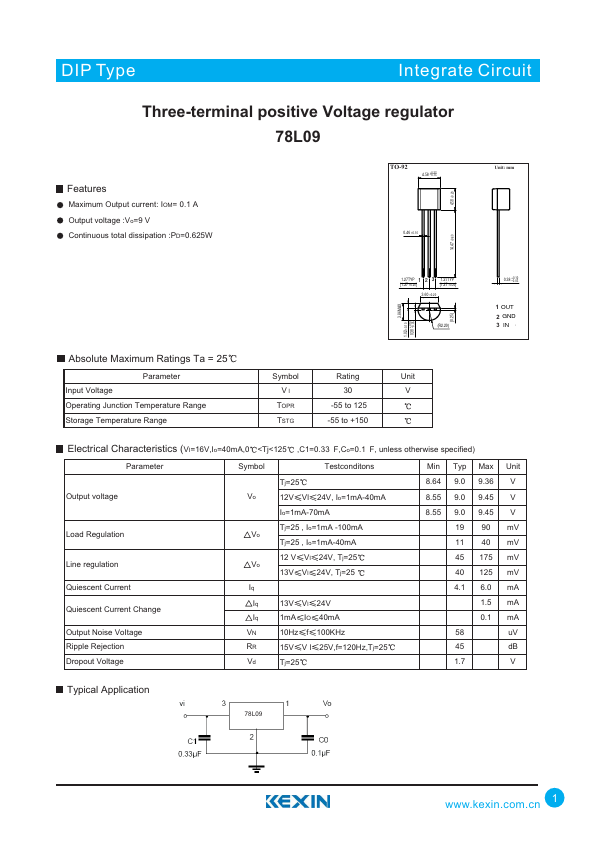

78L09 Datasheet Three-terminal Positive Voltage Regulator

Manufacturer: Kexin Semiconductor

Overview: DIP Type Integrate Circuit Three-terminal positive Voltage regulator.

Datasheet Details

Part number	78L09
Manufacturer	Kexin Semiconductor
File Size	122.49 KB
Description	Three-Terminal Positive Voltage Regulator
Datasheet	78L09-Kexin.pdf

Key Features

Maximum Output current: IOM= 0.1 A Output voltage :Vo=9 V Continuous total dissipation :PD=0.625W TO-92 4.58 +0.25.
0.15 0.46 ±0.10 4.58 ±0.20 Unit: mm 14.47 ±0.40 +0.10.
0.05 1 2 3 1.27TYP 1.27TYP [1.27 ±0.20] [1.27 ±0.20] 3.60 ±0.20 (0.25) (R2.29) 0.38 +0.10.
0.05 11.B. aOseUT 22.E. mGitNteDr 33.c. olIlNector 3.86MAX 0.38 1.02 ±0.10 Absolute Maximum Ratings Ta = 25 Parameter Input Voltage Operating Junction Temperature Range Storage Temperature Ran.
