Kexin Electronics AO3404A
N-Channel MOSFET
| Part No. | AO3404A |
|---|---|
| Datasheet | AO3404A Download |
| Manufacturer | Kexin Electronics |
| Description | N-Channel MOSFET |
| Buy | Stock & Price |

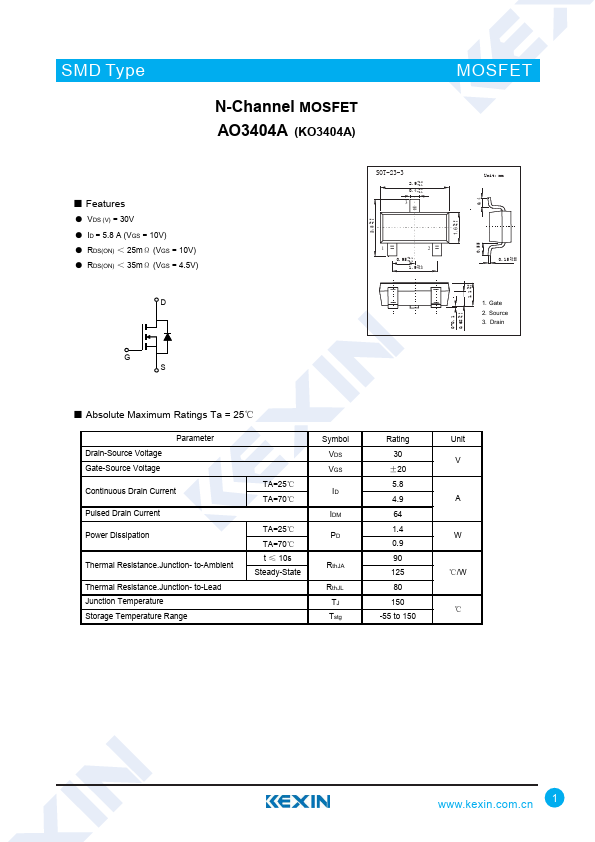

FEATURES
● VDS (V) = 30V● ID = 5.8 A (VGS = 10V)
● RDS(ON) ＜ 25mΩ (VGS = 10V)
● RDS(ON) ＜ 35mΩ (VGS = 4.5V) D G S +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.68 -0.1
●
ABSOLUTE MAXIMUM RATINGS
Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range TA=25℃ TA=70℃ TA=25℃ TA=70℃ t ≤ 10s Steady-State Symbol VDS VGS ID IDM PD RthJA RthJL TJ Tstg Rating 30 ±20 5.8 4.9 64 1.4 0.9 90 125 80 150 -55 to 150 Unit V A W ℃/W ℃ 1 SMD Type MOSFET N-Channel MOSFET AO3404A (KO3404A)●

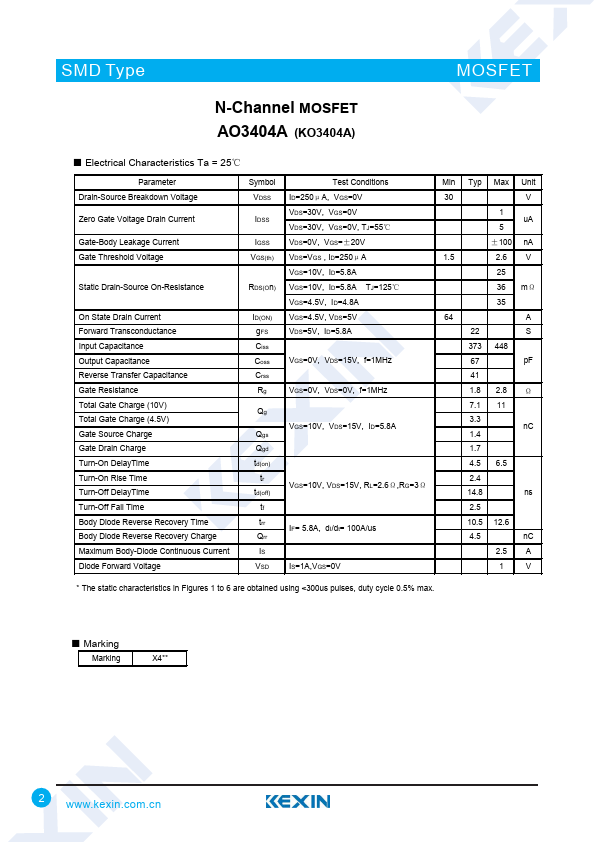

ELECTRICAL CHARACTERISTICS
Ta = 25℃ Parameter Drain-Source Breakdown Voltage Zero Gate Voltage Drain Current Gate-Body Leakage Current Gate Threshold Voltage Static Drain-Source On-Resistan...
