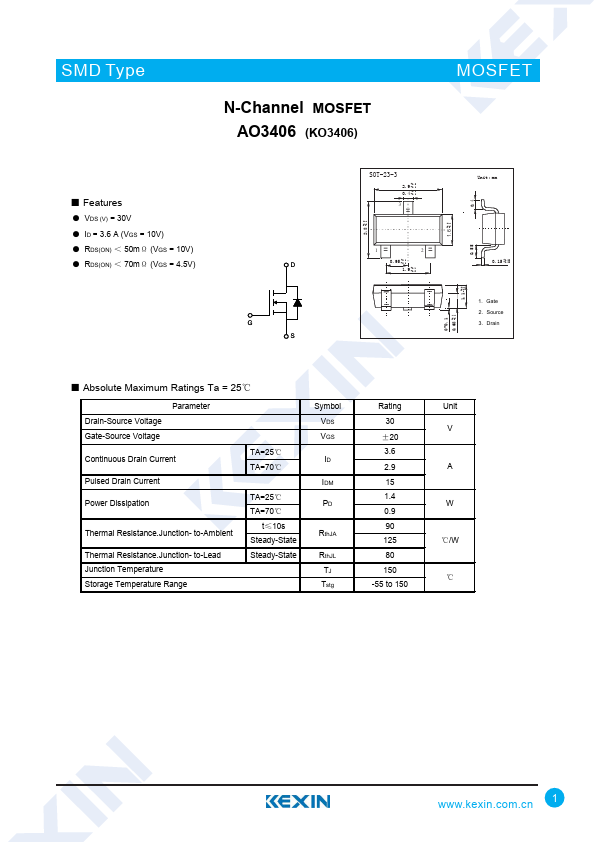

AO3406
AO3406 is N-Channel MOSFET manufactured by Kexin Semiconductor.
Features
- VDS (V) = 30V
- ID = 3.6 A (VGS = 10V)
- RDS(ON) ＜ 50mΩ (VGS = 10V)
- RDS(ON) ＜ 70mΩ (VGS = 4.5V)
+0.2 2.8 -0.1
SOT-23-3
2.9 +0.2 -0.1
0.4 +0.1 -0.1
0.95 +0.1 -0.1 1.9 +0.1 -0.2
+0.2 1.6 -0.1
+0.2 1.1 -0.1
Unit: mm
0.15 +0.02 -0.02
1. Gate 2. Source 3. Drain
0-0.1 +0.1 0.68
-0.1
- Absolute Maximum Ratings Ta = 25℃
Drain-Source Voltage Gate-Source Voltage
Parameter
Continuous Drain Current
Pulsed Drain Current
Power Dissipation
Thermal Resistance.Junction- to-Ambient
Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range
TA=25℃ TA=70℃
TA=25℃ TA=70℃ t≤10s Steady-State Steady-State
Symbol VDS VGS ID
IDM PD
Rth JA Rth JL
TJ Tstg
Rating 30
±20 3.6 2.9 15 1.4 0.9 90 125 80 150 -55 to 150
Unit V A...
