Kexin Electronics AO3413
P-Channel MOSFET
| Part No. | AO3413 |
|---|---|
| Datasheet | AO3413 Download |
| Manufacturer | Kexin Electronics |
| Description | P-Channel MOSFET |
| Buy | Stock & Price |

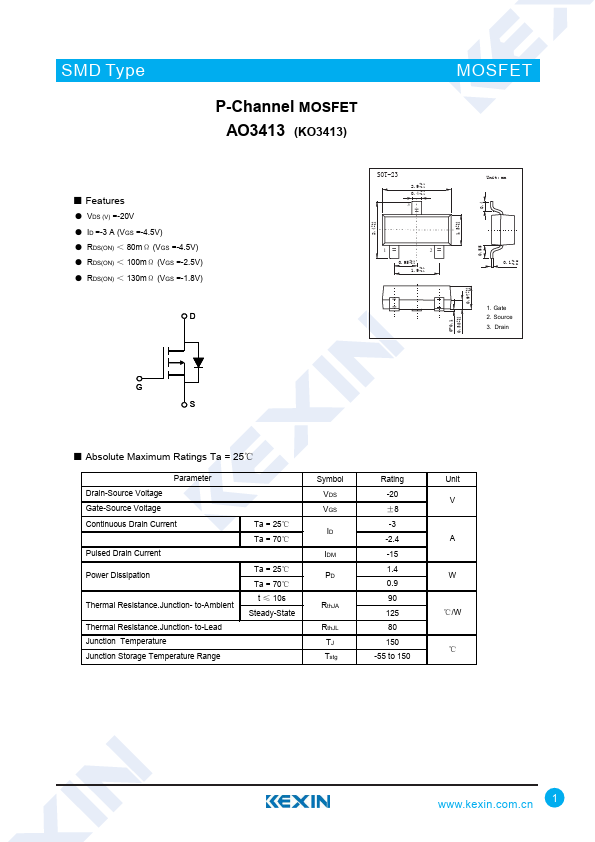

FEATURES
● VDS (V) =-20V● ID =-3 A (VGS =-4.5V)
● RDS(ON) ＜ 80mΩ (VGS =-4.5V)
● RDS(ON) ＜ 100mΩ (VGS =-2.5V)
● RDS(ON) ＜ 130mΩ (VGS =-1.8V) D +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.38 -0.1 G S
●
ABSOLUTE MAXIMUM RATINGS
Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Junction Storage Temperature Range Ta = 25℃ Ta = 70℃ Ta = 25℃ Ta = 70℃ t ≤ 10s Steady-State Symbol VDS VGS ID IDM PD RthJA RthJL TJ Tstg Rating -20 ±8 -3 -2.4 -15 1.4 0.9 90 125 80 150 -55 to 150 Unit V A W ℃/W ℃ 1 SMD Type MOSFET P-Channel MOSFET AO3413 (KO3413)●

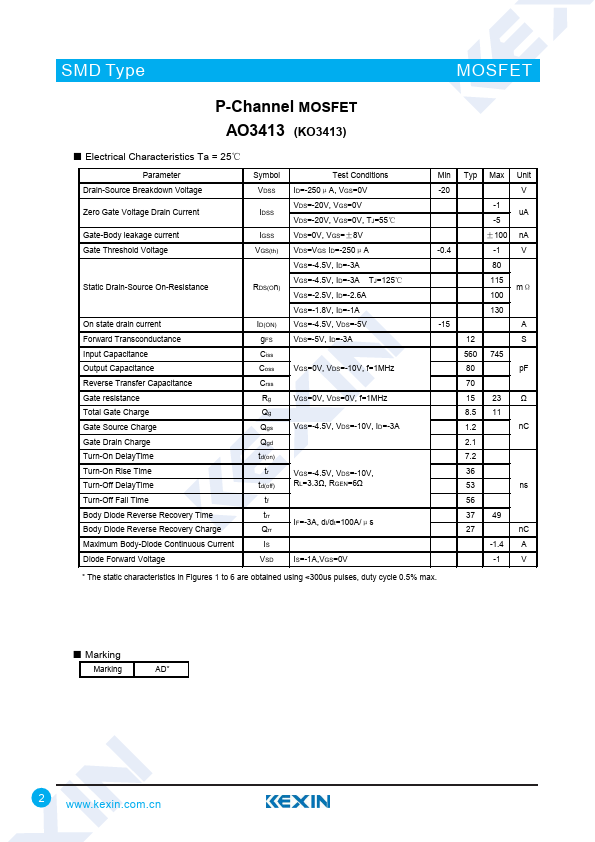

ELECTRICAL CHARACTERISTICS
Ta = 25℃ Parameter Drain-Source Breakdown Voltage Zero Gate Voltage Drain Current Gate-Body leakage current Gate Thr...
