AO3415 - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-20V.
  • ID =-5 A (VGS =-4.5V).
  • RDS(ON) ＜ 43mΩ (VGS =-4.5V).
  • RDS(ON) ＜ 55mΩ (VGS =-2.5V).
  • RDS(ON) ＜ 75mΩ (VGS =-1.8V).
  • RDS(ON) ＜ 100mΩ (VGS =-1.5V) D +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 G S 0-0.1 +0.1 0.68 -0.1 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 MOSFET Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Paramet.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO3415 20V P-Channel MOSFET Alpha & Omega Semiconductors
AO3415 P-Channel MOSFET VBsemi
AO3415 P-Channel Enhancement-Mode MOSFET HAOHAI
AO3415A 20V P-Channel MOSFET Alpha & Omega Semiconductors
AO3415A P-Channel MOSFET VBsemi

Other Datasheets by Kexin Semiconductor

Part Number Description
AO3415A P-Channel MOSFET
AO3410 N-Channel MOSFET
AO3413 P-Channel MOSFET
AO3414 N-Channel MOSFET
AO3416 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

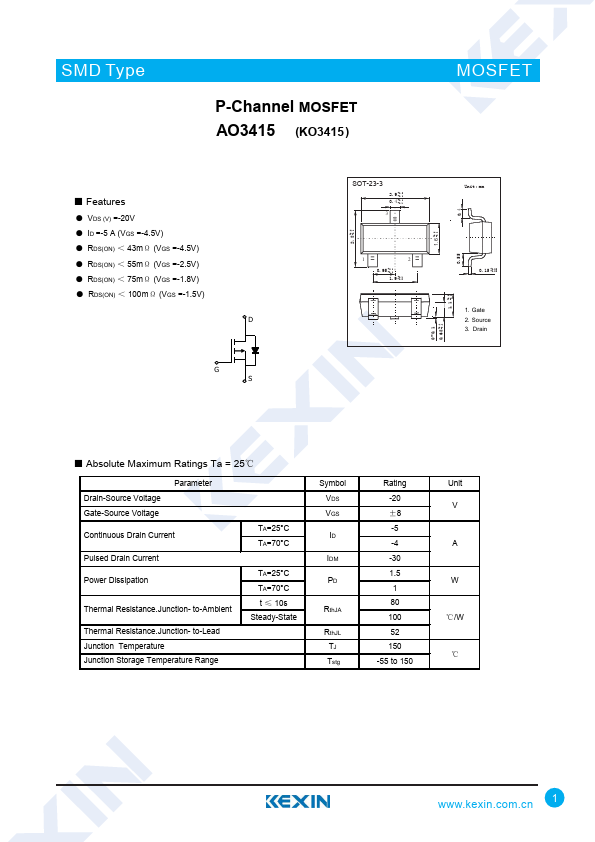

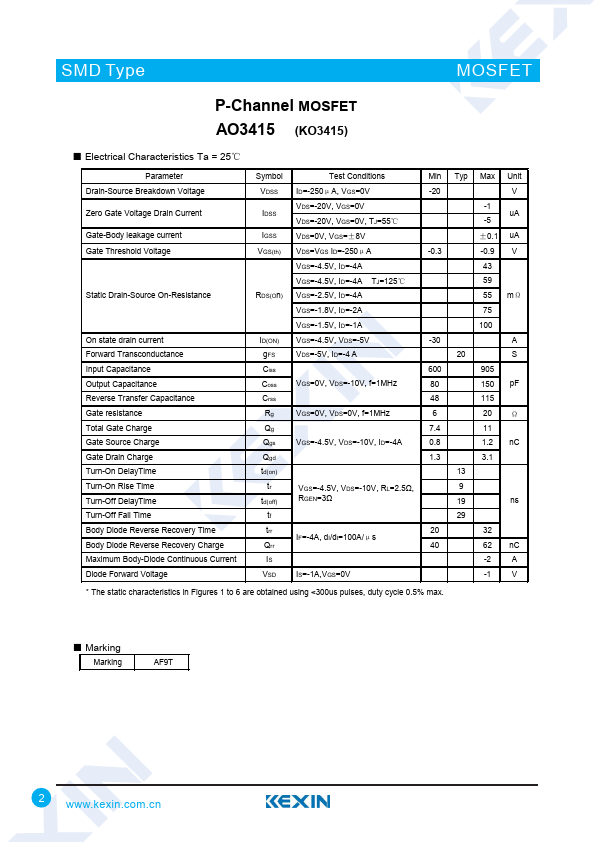

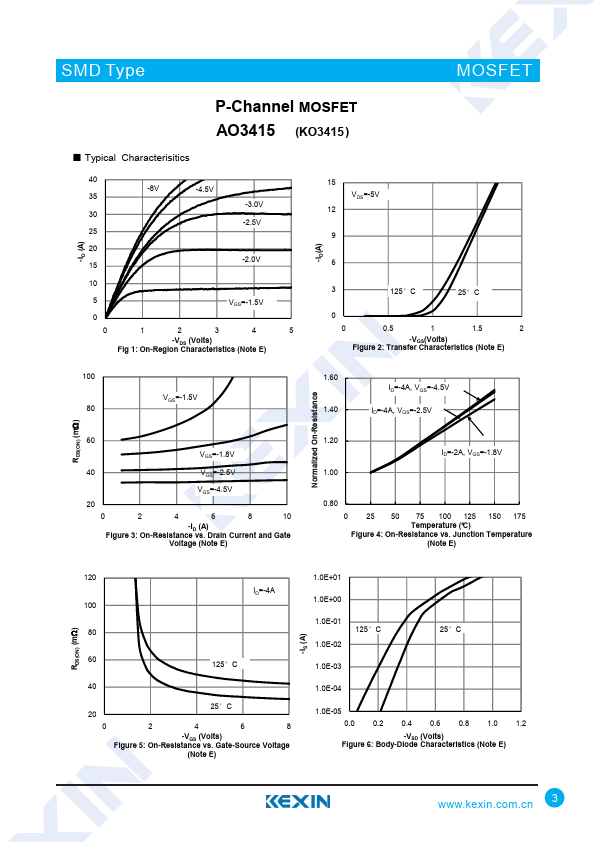

SMD Type P-Channel MOSFET AO3415 (KO3415) ■ Features ● VDS (V) =-20V ● ID =-5 A (VGS =-4.5V) ● RDS(ON) ＜ 43mΩ (VGS =-4.5V) ● RDS(ON) ＜ 55mΩ (VGS =-2.5V) ● RDS(ON) ＜ 75mΩ (VGS =-1.8V) ● RDS(ON) ＜ 100mΩ (VGS =-1.5V) D +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 G S 0-0.1 +0.1 0.68 -0.1 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 MOSFET Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.
