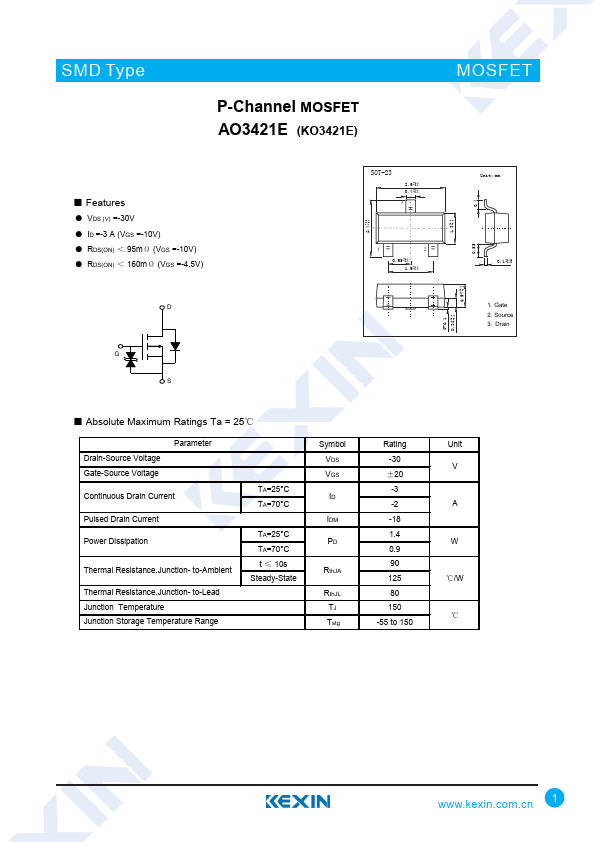

AO3421E
AO3421E is P-Channel MOSFET manufactured by Kexin Semiconductor.
Features
- VDS (V) =-30V
- ID =-3 A (VGS =-10V)
- RDS(ON) ＜ 95mΩ (VGS =-10V)
- RDS(ON) ＜ 160mΩ (VGS =-4.5V)
+0.1 2.4 -0.1
SOT-23
2.9 +0.1 -0.1
0.4 +0.1 -0.1
0.95 +0.1 -0.1 1.9 +0.1 -0.1
+0.1 1.3 -0.1
+0.1 0.97 -0.1
Unit: mm
0.1 +0.05 -0.01
1. Gate 2. Source 3. Drain
0-0.1 +0.1 0.38
-0.1
- Absolute Maximum Ratings Ta = 25℃
Drain-Source Voltage Gate-Source Voltage
Parameter
Continuous Drain Current
Pulsed Drain Current
Power Dissipation
Thermal Resistance.Junction- to-Ambient
Thermal Resistance.Junction- to-Lead Junction Temperature Junction Storage Temperature Range
TA=25°C TA=70°C
TA=25°C TA=70°C t ≤ 10s Steady-State
Symbol VDS VGS ID
IDM PD
Rth JA Rth JL
TJ Tstg
Rating -30 ±20 -3 -2 -18 1.4 0.9 90 125 80 150
-55 to 150
Unit V A...
