AO3435 - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-20V.
  • ID =-3.5 A (VGS =-4.5V).
  • RDS(ON) ＜ 70mΩ (VGS =-4.5V).
  • RDS(ON) ＜ 90mΩ (VGS =-2.5V).
  • RDS(ON) ＜ 110mΩ (VGS =-1.8V).

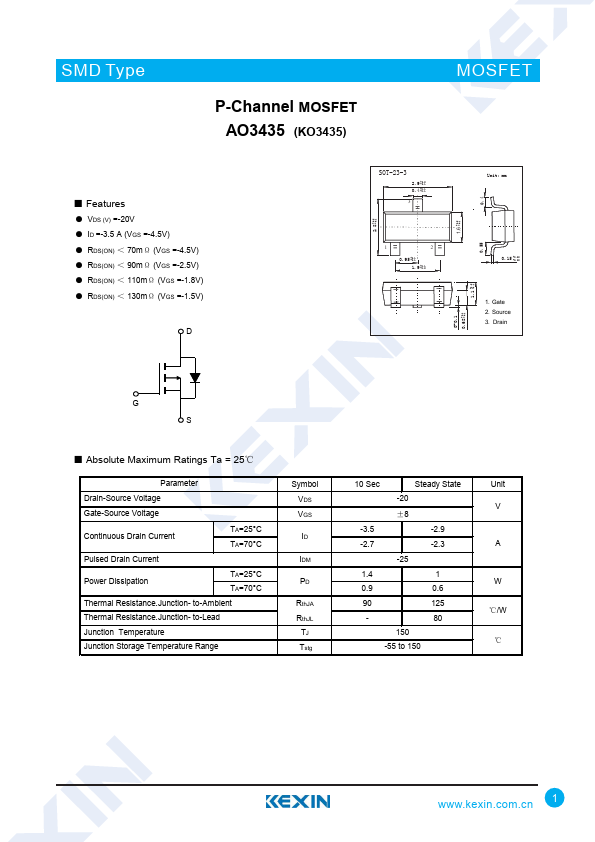

  • RDS(ON) ＜ 130mΩ (VGS =-1.5V) D +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.68 -0.1 G S.

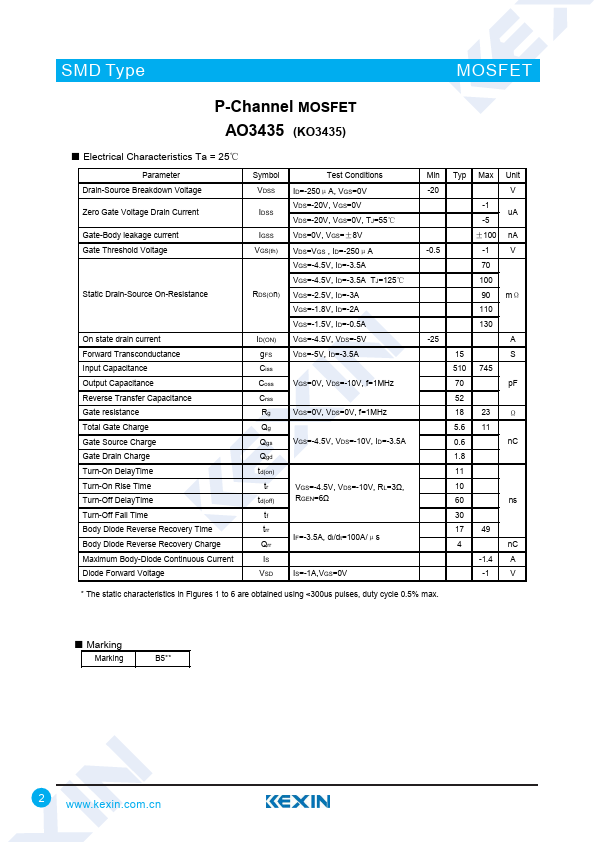

  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage.
