AO4292 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 100V.
  • ID = 8 A (VGS = 10V).
  • RDS(ON) ＜ 23mΩ (VGS = 10V).
  • RDS(ON) ＜ 33mΩ (VGS = 4.5V) SOP-8 +0.04 0.21 -0.02 D MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage VDS Spike @ 10us Continuous Drain Current Pulsed Drain Current Avalanche Current Avalanche Energy Power Dissipation Thermal Resistance. Junction- to-Ambient Thermal Resist.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4292 100V N-Channel MOSFET Alpha & Omega Semiconductors
AO4292E 100V N-Channel MOSFET Alpha & Omega Semiconductors
AO4290A 100V Channel AlphaSGT Alpha & Omega Semiconductors
AO4294 N-Channel 100V Power MOSFET VBsemi
AO4294 100V N-Channel MOSFET Alpha & Omega Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4202 N-Channel MOSFET
AO4240 N-Channel MOSFET
AO4240-HF N-Channel MOSFET
AO4260 N-Channel MOSFET
AO4264 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

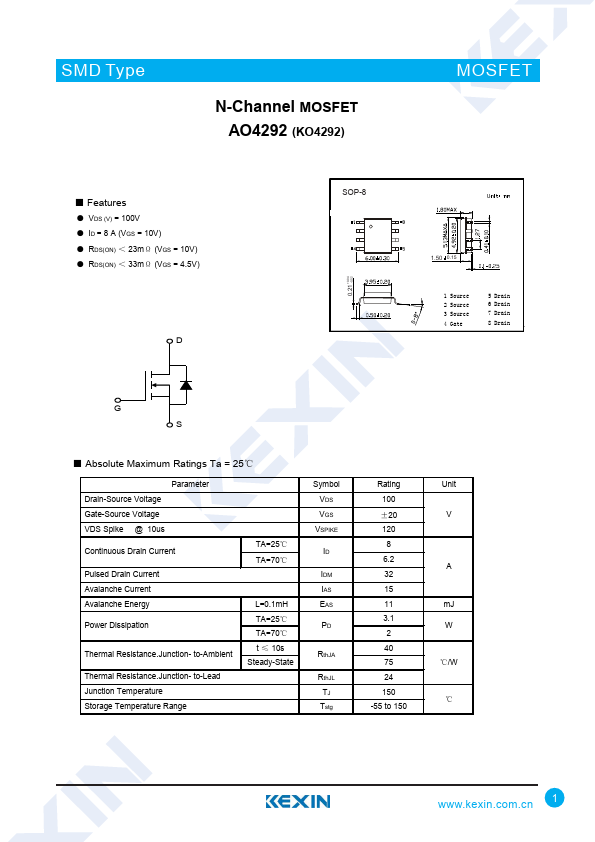

SMD Type N-Channel MOSFET AO4292 (KO4292) ■ Features ● VDS (V) = 100V ● ID = 8 A (VGS = 10V) ● RDS(ON) ＜ 23mΩ (VGS = 10V) ● RDS(ON) ＜ 33mΩ (VGS = 4.5V) SOP-8 +0.04 0.21 -0.02 D MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage VDS Spike @ 10us Continuous Drain Current Pulsed Drain Current Avalanche Current Avalanche Energy Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range TA=25℃ TA=70℃ L=0.1mH TA=25℃ TA=70℃ t ≤ 10s Steady-State Symbol VDS VGS VSPIKE ID IDM IAS EAS PD RthJA RthJL TJ Tstg Rating 100 ±20 120 8 6.2 32 15 11 3.
