Kexin Electronics AO4304
N-Channel MOSFET
| Part No. | AO4304 |
|---|---|
| Datasheet | AO4304 Download |
| Manufacturer | Kexin Electronics |
| Description | N-Channel MOSFET |
| Buy | Stock & Price |
FEATURES
● VDS (V) = 30V● ID = 18 A (VGS = 10V)
● RDS(ON) ＜ 6mΩ (VGS = 10V)
● RDS(ON) ＜ 7.6mΩ (VGS = 4.5V) D +0.04 0.21 -0.02 SOP-8 MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S
●
ABSOLUTE MAXIMUM RATINGS
Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current Avalanche energy Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range TA=25℃ TA=70℃ L=0.1mH TA=25℃ TA=70℃ t ≤ 10s Steady-State Symbol VDS VGS ID IDM IAS,IAR EAS,EAR PD RthJA RthJL TJ Tstg Rating 30 ±20 18 14 200 35 61 3.6 2.3 35 65 15 150 -55 to 150 Unit V A mJ W ℃/W ℃ 1 SMD Type MOSFET N-Channel MOSFET AO4304 (KO4304)●

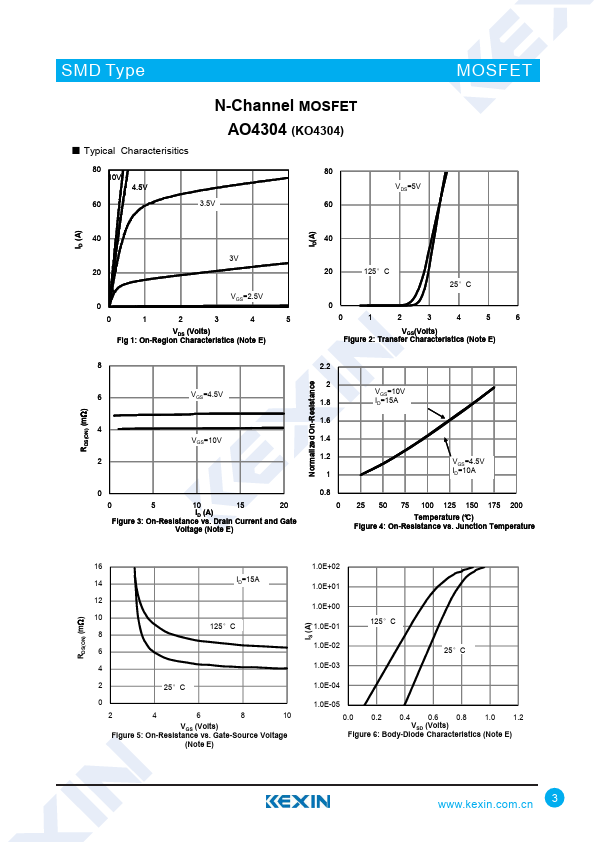

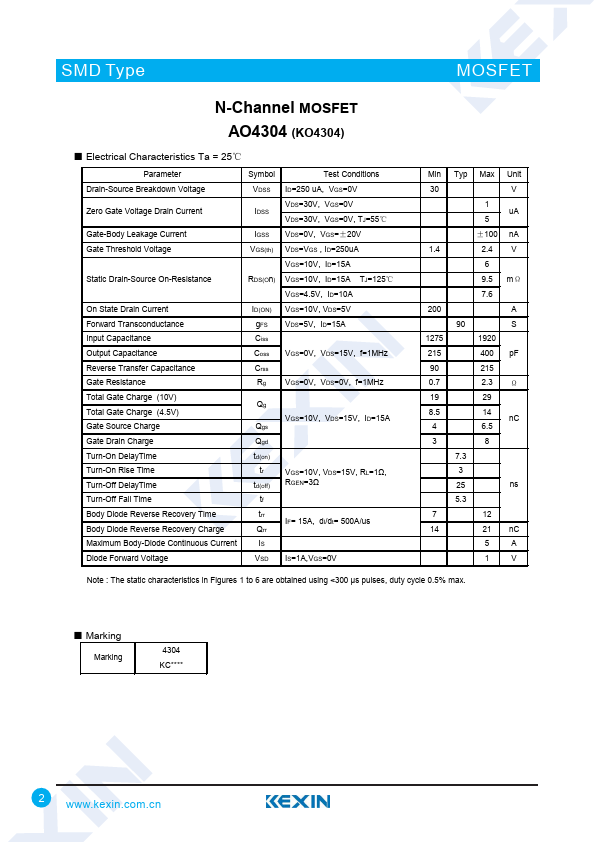

ELECTRICAL CHARACTERISTICS
Ta = 25℃ Parameter Drain-Source Breakdown Voltage Zero Gate Voltage Drain Current Gate-Body Leakage Current Gate Threshold Voltage Static Drain-Source On-Resistance On State Drain Current Forward Transconductance Input Capacitance Output Capacitance Reverse Transfer Capacitance Gate Resistance Total Gate Charge (10V) Total Gate Charge (4.
