AO4407A - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-30V.
  • ID =-12 A (VGS =-20V).
  • RDS(ON) ＜ 11mΩ (VGS =-20V).
  • RDS(ON) ＜ 13mΩ (VGS =-10V).
  • RDS(ON) ＜ 17mΩ (VGS =-6V) +0.04 0.21 -0.02 SOP-8 D MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current Avalanche energy Power Dissipation Thermal Resistance. Junction- to-Amb.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4407A 30V P-Channel MOSFET Alpha & Omega Semiconductors
AO4407A P-Channel MOSFET Freescale
AO4407A P-Channel MOSFET VBsemi
AO4407 P-Channel MOSFET Alpha & Omega Semiconductors
AO4407 P-Channel MOSFET Freescale

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4407 P-Channel MOSFET
AO4402 N-Channel MOSFET
AO4403 P-Channel MOSFET
AO4403-HF P-Channel MOSFET
AO4404 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

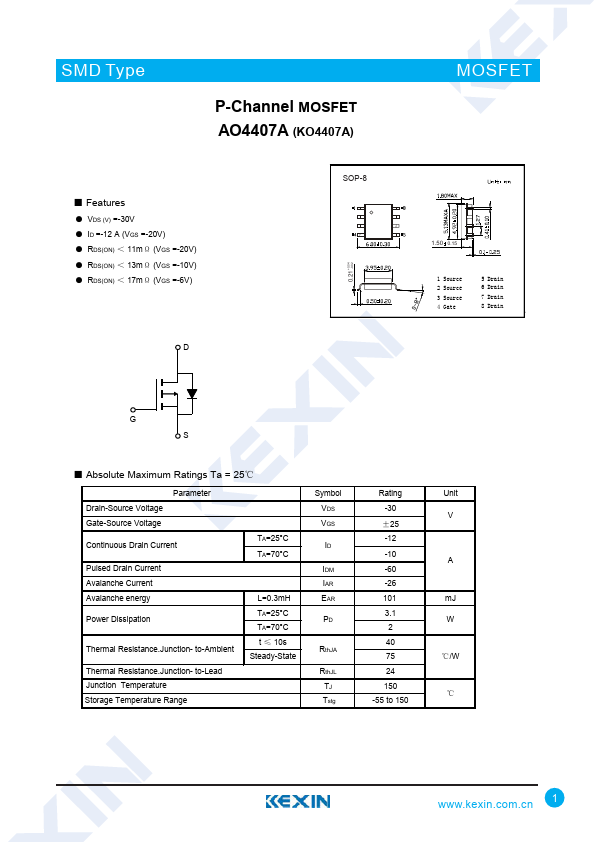

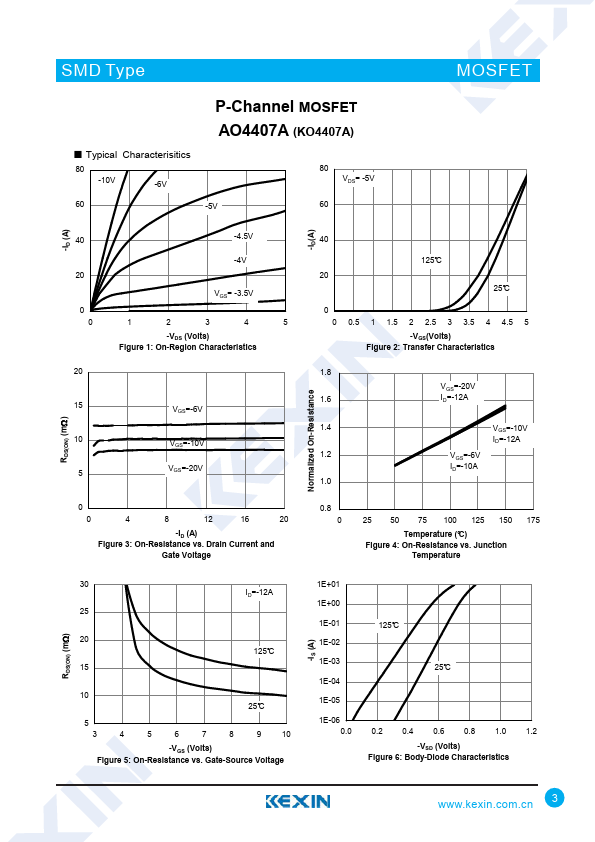

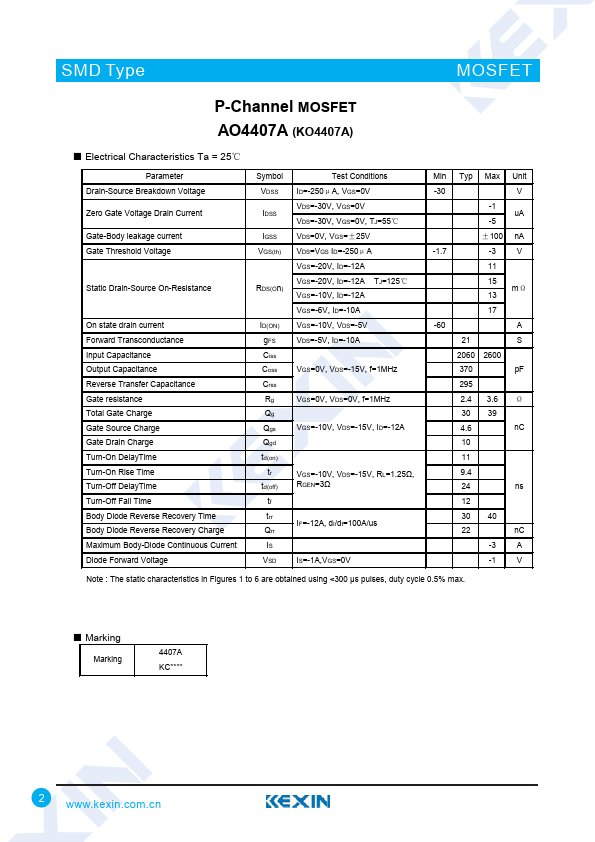

SMD Type P-Channel MOSFET AO4407A (KO4407A) ■ Features ● VDS (V) =-30V ● ID =-12 A (VGS =-20V) ● RDS(ON) ＜ 11mΩ (VGS =-20V) ● RDS(ON) ＜ 13mΩ (VGS =-10V) ● RDS(ON) ＜ 17mΩ (VGS =-6V) +0.04 0.21 -0.02 SOP-8 D MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current Avalanche energy Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range TA=25°C TA=70°C L=0.3mH TA=25°C TA=70°C t ≤ 10s Steady-State Symbol VDS VGS ID IDM IAR EAR PD RthJA RthJL TJ Tstg Rating -30 ±25 -12 -10 -60 -26 101 3.
