Kexin Electronics AO4413
P-Channel MOSFET
| Part No. | AO4413 |
|---|---|
| Datasheet | AO4413 Download |
| Manufacturer | Kexin Electronics |
| Description | P-Channel MOSFET |
| Buy | Stock & Price |

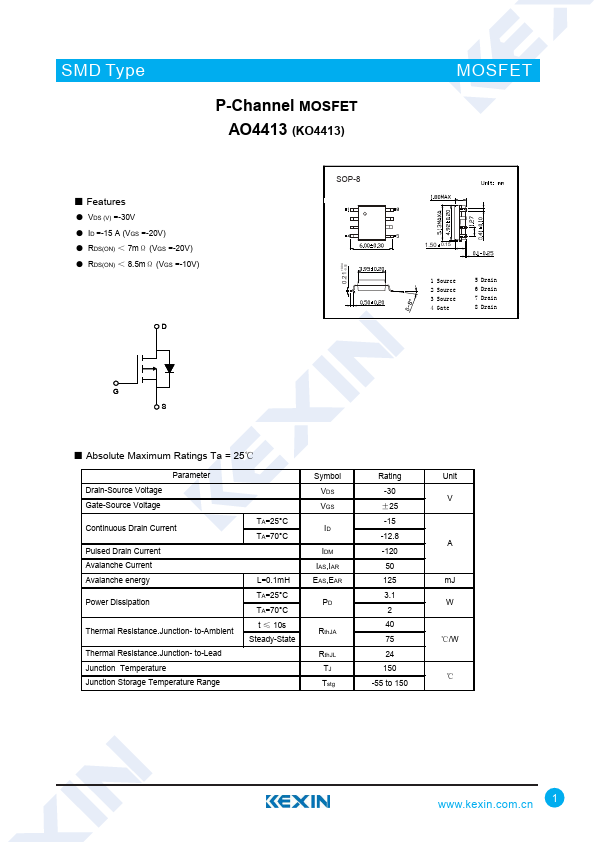

FEATURES
● VDS (V) =-30V● ID =-15 A (VGS =-20V)
● RDS(ON) ＜ 7mΩ (VGS =-20V)
● RDS(ON) ＜ 8.5mΩ (VGS =-10V) SOP-8 +0.04 0.21 -0.02 D MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S
●
ABSOLUTE MAXIMUM RATINGS
Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current Avalanche energy Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Junction Storage Temperature Range TA=25°C TA=70°C L=0.1mH TA=25°C TA=70°C t ≤ 10s Steady-State Symbol VDS VGS ID IDM IAS,IAR EAS,EAR PD RthJA RthJL TJ Tstg Rating -30 ±25 -15 -12.8 -120 50 125 3.1 2 40 75 24 150 -55 to 150 Unit V A mJ W ℃/W ℃ 1 SMD Type MOSFET P-Channel MOSFET AO4413 (KO4413)●

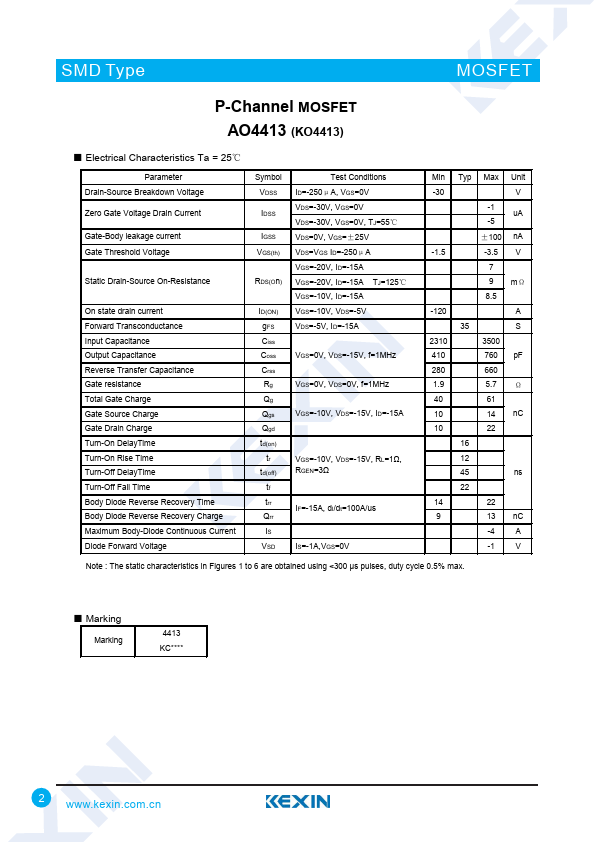

ELECTRICAL CHARACTERISTICS
Ta = 25℃ Parameter Drain-Source Breakdown Voltage Zero Gate Voltage Drain Current Gate-Body leakage current Gate Threshold Voltage Static Drain-Source On-Resistance On state...
