AO4438 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 60V.
  • ID = 8.2 A (VGS = 10V).
  • RDS(ON) ＜ 22mΩ (VGS = 10V).
  • RDS(ON) ＜ 27mΩ (VGS = 4.5V) SOP-8 +0.04 0.21 -0.02 D MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Power Dissipation Thermal Resistance. Junction- to-Ambient Thermal Resistance. Junction- to-Lead Junction Temperature St.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4438 60V N-Channel MOSFET Alpha & Omega Semiconductors
AO4430 30V N-Channel MOSFET Alpha & Omega Semiconductors
AO4430 N-Channel MOSFET VBsemi
AO4430L N-Channel FET Alpha & Omega Semiconductors
AO4433 P-Channel Power MOSFET Alpha & Omega Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4430 N-Channel MOSFET
AO4402 N-Channel MOSFET
AO4403-HF P-Channel MOSFET
AO4404 N-Channel MOSFET
AO4404B N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

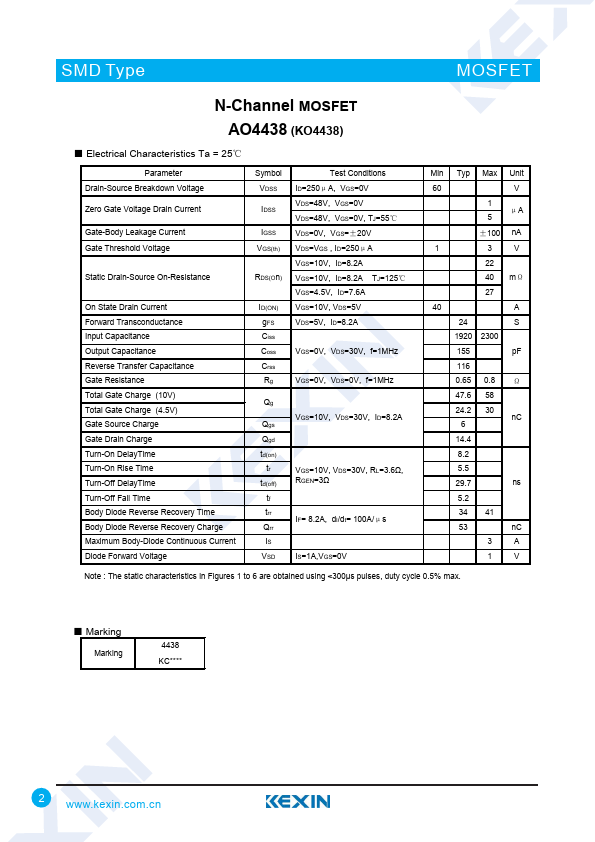

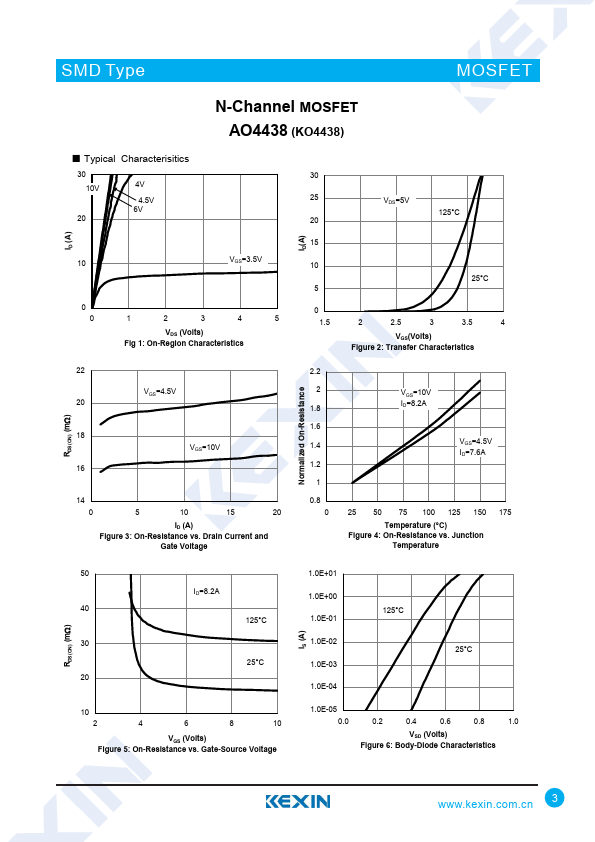

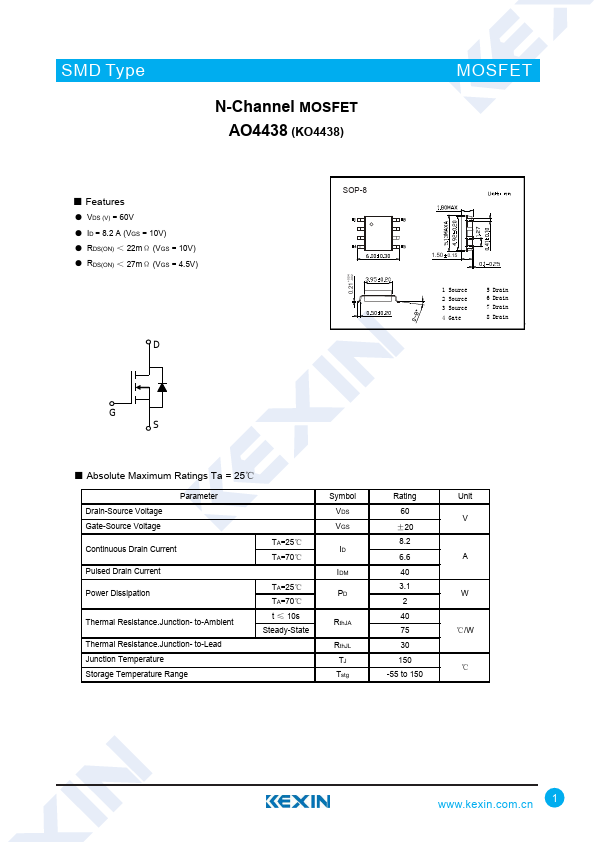

SMD Type N-Channel MOSFET AO4438 (KO4438) ■ Features ● VDS (V) = 60V ● ID = 8.2 A (VGS = 10V) ● RDS(ON) ＜ 22mΩ (VGS = 10V) ● RDS(ON) ＜ 27mΩ (VGS = 4.5V) SOP-8 +0.04 0.21 -0.02 D MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range TA=25℃ TA=70℃ TA=25℃ TA=70℃ t ≤ 10s Steady-State Symbol VDS VGS ID IDM PD RthJA RthJL TJ Tstg Rating 60 ±20 8.2 6.6 40 3.1 2 40 75 30 150 -55 to 150 Unit V A W ℃/W ℃ www.kexin.com.
