AO4480 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 40V.
  • ID = 14 A (VGS = 10V).
  • RDS(ON) ＜ 11.5mΩ (VGS = 10V).
  • RDS(ON) ＜ 15.5mΩ (VGS = 4.5V).
  • ESD Rating: 4KV HBM SOP-8 +0.04 0.21 -0.02 D G S MOSFET Unit:mm 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current Repetitive Avalanche Energy Power Dissipation Thermal Resistance. J.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4480 40V N-Channel MOSFET Alpha & Omega Semiconductors
AO4480 40V N-Channel Enhancement Mode MOSFET MAOYUAN
AO4480 40V N-ChanneI MOSFET UMW
AO4482 N-Channel MOSFET Freescale
AO4482 100V N-Channel MOSFET Alpha & Omega Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4482 N-Channel MOSFET
AO4484 N-Channel MOSFET
AO4485 P-Channel MOSFET
AO4488 N-Channel MOSFET
AO4402 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

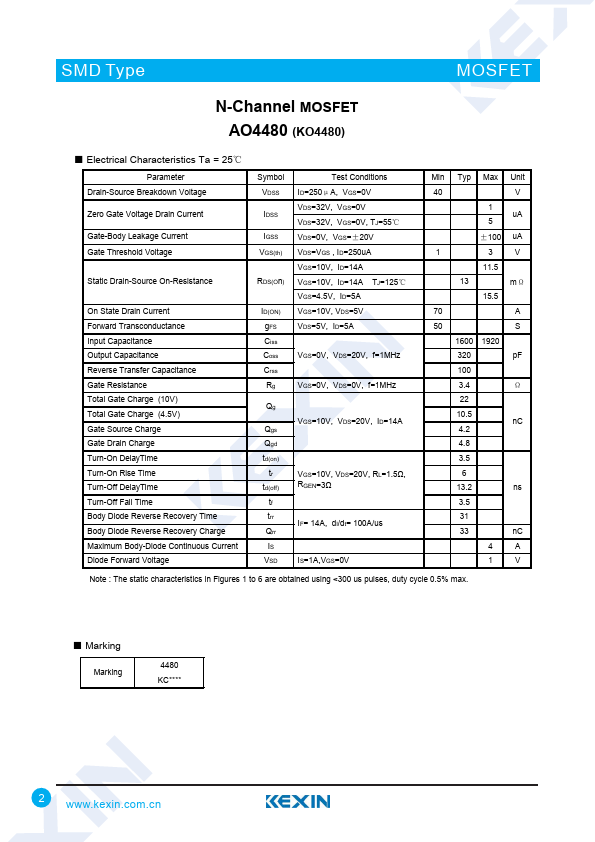

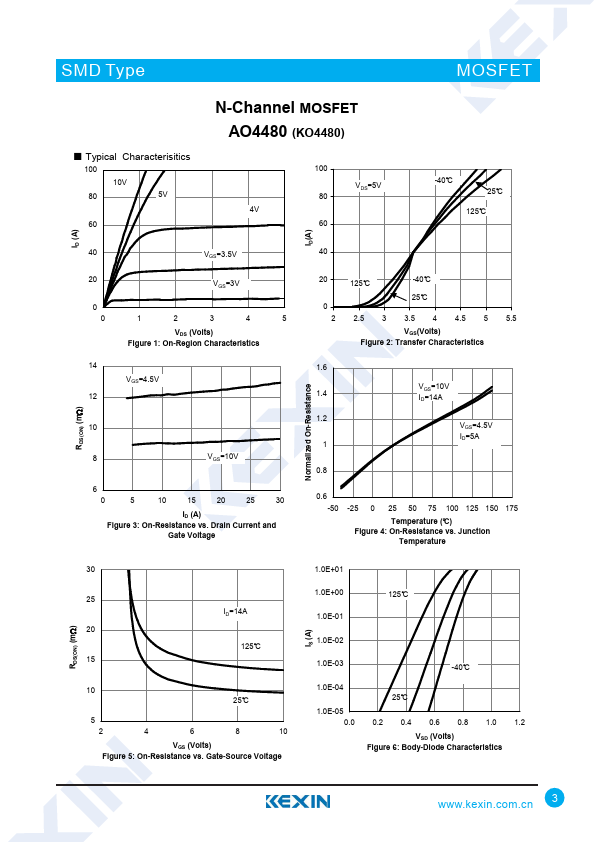

SMD Type N-Channel MOSFET AO4480 (KO4480) ■ Features ● VDS (V) = 40V ● ID = 14 A (VGS = 10V) ● RDS(ON) ＜ 11.5mΩ (VGS = 10V) ● RDS(ON) ＜ 15.5mΩ (VGS = 4.5V) ● ESD Rating: 4KV HBM SOP-8 +0.04 0.21 -0.02 D G S MOSFET Unit:mm 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current Repetitive Avalanche Energy Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range TA=25℃ TA=70℃ L=0.3mH TA=25℃ TA=70℃ t ≤ 10s Steady-State Symbol VDS VGS ID IDM IAR EAR PD RthJA RthJL TJ Tstg Rating 40 ±20 14 11 70 30 135 3.
