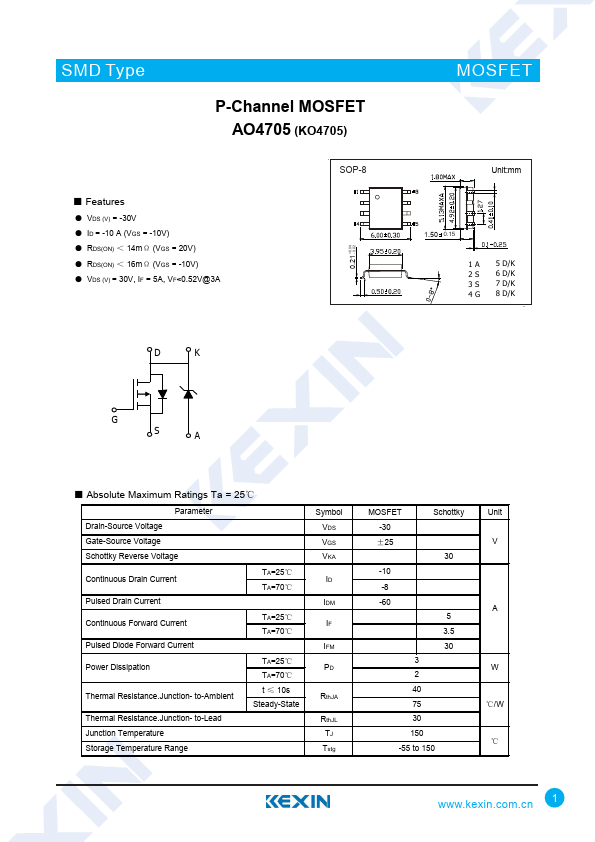

AO4705
AO4705 is P-Channel MOSFET manufactured by Kexin Semiconductor.
Features
- VDS (V) = -30V
- ID = -10 A (VGS = -10V)
- RDS(ON) ＜ 14mΩ (VGS = 20V)
- RDS(ON) ＜ 16mΩ (VGS = -10V)
- VDS (V) = 30V, IF = 5A, VF<0.52V@3A
+0.04 0.21 -0.02
SOP-8
MOSFET
Unit:mm
1.50 0.15 1 A 5 D/K 2 S 6 D/K 3 S 7 D/K 4 G 8 D/K
- Absolute Maximum Ratings Ta = 25℃
Parameter Drain-Source Voltage Gate-Source Voltage Schottky Reverse Voltage
Continuous Drain Current Pulsed Drain Current
TA=25℃ TA=70℃
Continuous Forward Current Pulsed Diode Forward Current
TA=25℃ TA=70℃
Power Dissipation
Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range
TA=25℃ TA=70℃ t ≤ 10s Steady-State
Symbol VDS VGS VKA ID
IDM IF IFM PD
Rth JA Rth JL
TJ Tstg
MOSFET
Schottky
-30
±25
-10
-8
-60...
