AO4752

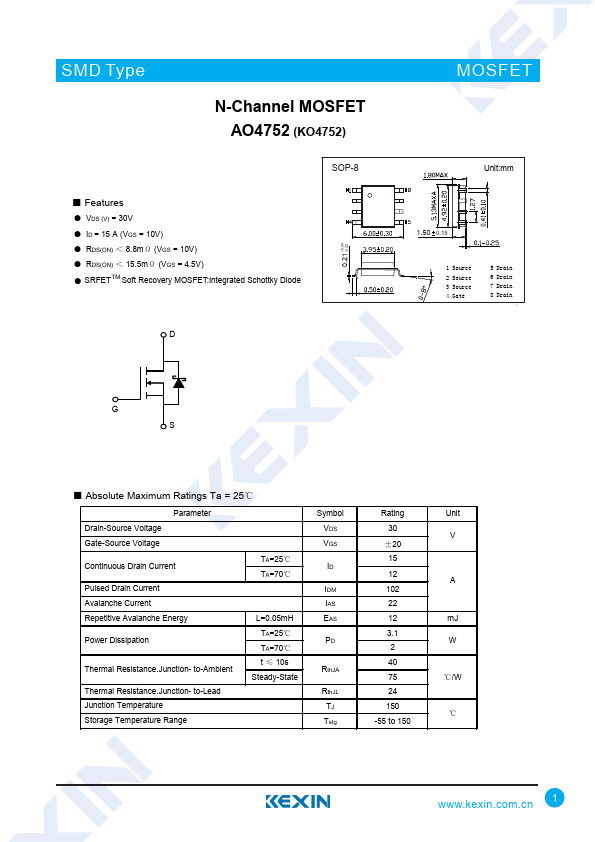

AO4752 is N-Channel MOSFET manufactured by Kexin Semiconductor.
Features
- VDS (V) = 30V
- ID = 15 A (VGS = 10V)
- RDS(ON) ＜ 8.8mΩ (VGS = 10V)
- RDS(ON) ＜ 15.5mΩ (VGS = 4.5V)
- SRFETTM Soft Recovery MOSFET:Integrated Schottky Diode
+0.04 0.21 -0.02
MOSFET
Unit:mm
1.50 0.15
1 Source 2 Source 3 Source 4 Gate
5 Drain 6 Drain 7 Drain 8 Drain
- Absolute Maximum Ratings Ta = 25℃
Drain-Source Voltage Gate-Source Voltage
Parameter
Continuous Drain Current
Pulsed Drain Current Avalanche Current Repetitive Avalanche Energy Power Dissipation
Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range
TA=25℃ TA=70℃
L=0.05m H TA=25℃ TA=70℃ t ≤ 10s
Steady-State
Symbol VDS VGS
IDM IAS EAS
Rth JA
Rth JL TJ Tstg
Rating 30
±20 15 12 102 22 12 3.1 2 40 75 24 150
-55 to 150
Unit V
A m J W ℃/W ℃
.kexin..cn 1
SMD Type
MOSFET
N-Channel MOSFET
AO4752 (KO4752)

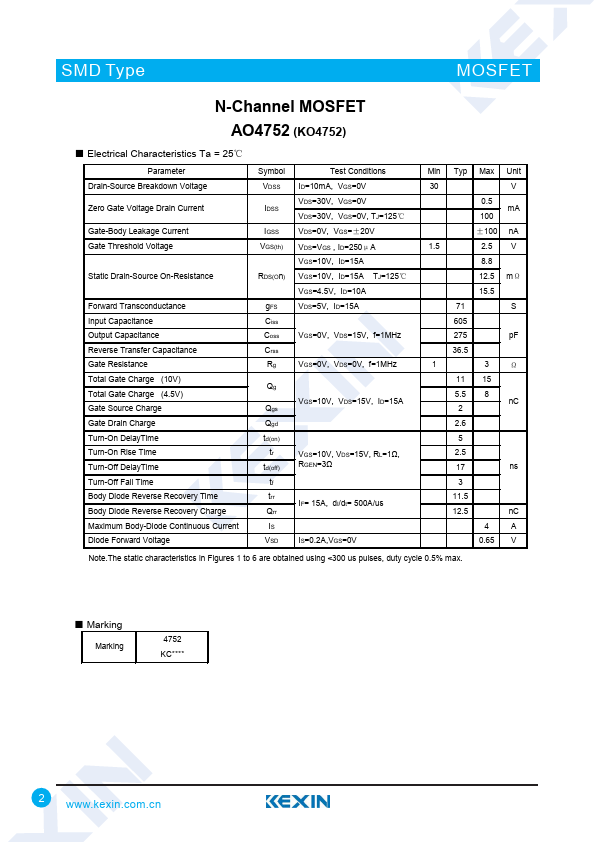

- Electrical Characteristics Ta =...
