Kexin Electronics AO4821
Dual P-Channel MOSFET
| Part No. | AO4821 |
|---|---|
| Datasheet | AO4821 Download |
| Manufacturer | Kexin Electronics |
| Description | Dual P-Channel MOSFET |
| Buy | Stock & Price |

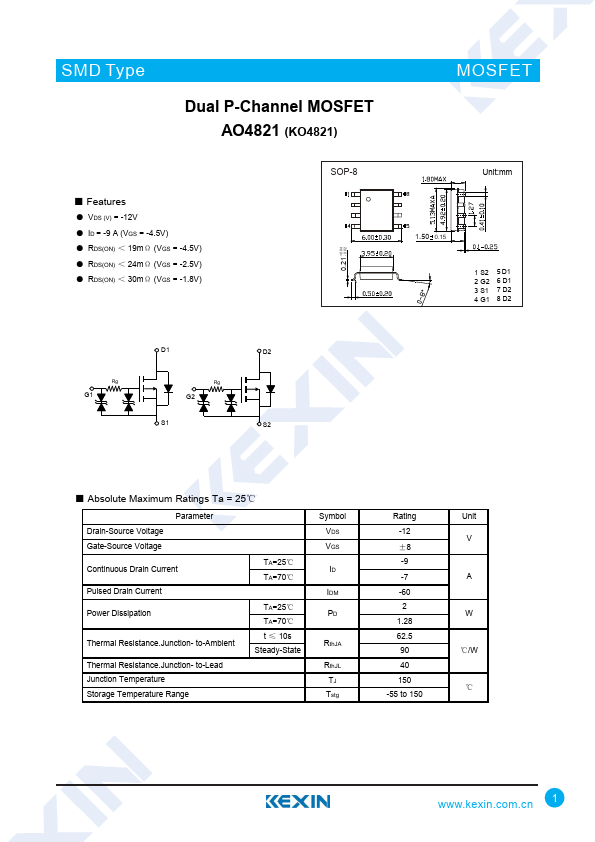

FEATURES
● VDS (V) = -12V● ID = -9 A (VGS = -4.5V)
● RDS(ON) ＜ 19mΩ (VGS = -4.5V)
● RDS(ON) ＜ 24mΩ (VGS = -2.5V)
● RDS(ON) ＜ 30mΩ (VGS = -1.8V) +0.04 0.21 -0.02 SOP-8 MOSFET Unit:mm 1.50 0.15 1 S2 2 G2 3 S1 4 G1 5 D1 6 D1 7 D2 8 D2 D1 D2 Rg G1 Rg G2 S1 S2
●
ABSOLUTE MAXIMUM RATINGS
Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current TA=25℃ TA=70℃ Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range TA=25℃ TA=70℃ t ≤ 10s Steady-State Symbol VDS VGS ID IDM PD RthJA RthJL TJ Tstg Rating -12 ±8 -9 -7 -60 2 1.28 62.5 90 40 150 -55 to 150 Unit V A W ℃/W ℃ 1 SMD Type MOSFET Dual P-Channel MOSFET AO4821 (KO4821)●

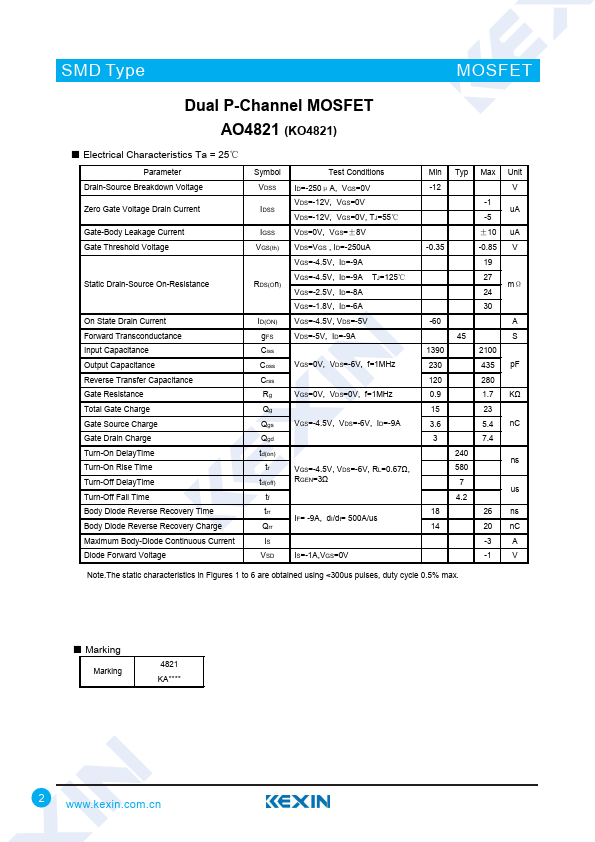

ELECTRICAL CHARACTERISTICS
Ta = 25℃ Parameter Drain-Source Breakdown Voltage Zero Gate Voltage Drain Current Gate-Body Leakage Current Gate Threshold Voltage Static Drain-Source On-Resistance On State Drain Current Forward Transconductance In...
