AO4824L - Dual N-Channel MOSFET

Key Features

  • s N-Channel 1.
  • VDS (V) = 30V.
  • ID = 8.5A (VGS = 10V).
  • RDS(ON) ＜ 17mΩ (VGS = 10V).
  • RDS(ON) ＜ 27mΩ (VGS = 4.5V) N-Channel 2.
  • VDS (V) = 30V.
  • ID = 9.8A (VGS = 10V).
  • RDS(ON) ＜ 13mΩ (VGS = 10V).
  • RDS(ON) ＜ 15mΩ (VGS = 4.5V) +0.04 0.21 -0.02 SOP-8 MOSFET Unit:mm 1.50 0.15 1 S2 2 G2 3 S1 4 G1 5 D1 6 D1 7 D2 8 D2 D1 D2 G1 G2 S1 S2.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Puls.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4824L 30V Dual N-Channel MOSFET Alpha & Omega Semiconductors
AO4824 30V Dual N-Channel MOSFET VBsemi
AO4824 Dual N-Channel MOSFET Alpha & Omega Semiconductors
AO4821 Dual P-Channel MOSFET Alpha & Omega Semiconductors
AO4821 20V Dual P-Channel MOSFET VBsemi

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4824L-HF Dual N-Channel MOSFET
AO4821 Dual P-Channel MOSFET
AO4822 Dual N-Channel MOSFET
AO4822A Dual N-Channel MOSFET
AO4828 Dual N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

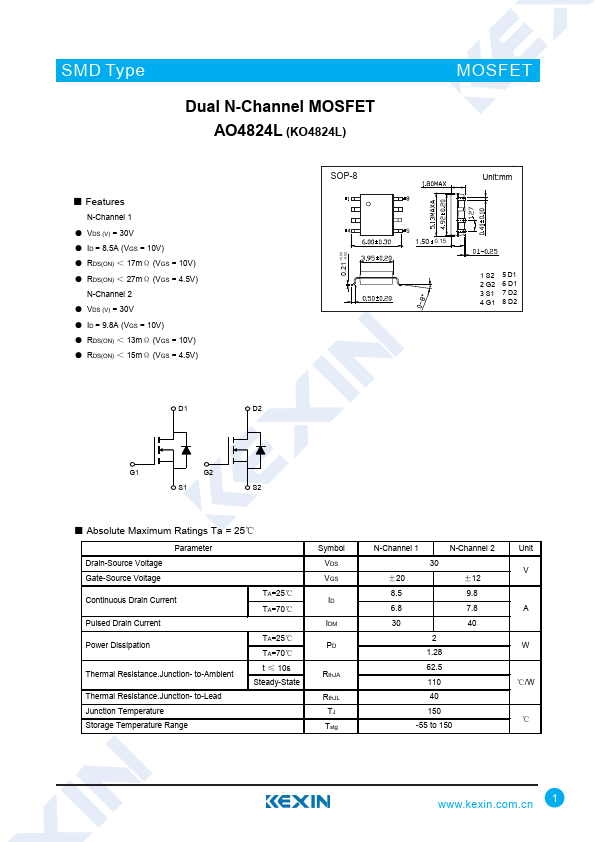

SMD Type Dual N-Channel MOSFET AO4824L (KO4824L) ■ Features N-Channel 1 ● VDS (V) = 30V ● ID = 8.5A (VGS = 10V) ● RDS(ON) ＜ 17mΩ (VGS = 10V) ● RDS(ON) ＜ 27mΩ (VGS = 4.5V) N-Channel 2 ● VDS (V) = 30V ● ID = 9.8A (VGS = 10V) ● RDS(ON) ＜ 13mΩ (VGS = 10V) ● RDS(ON) ＜ 15mΩ (VGS = 4.5V) +0.04 0.21 -0.02 SOP-8 MOSFET Unit:mm 1.50 0.15 1 S2 2 G2 3 S1 4 G1 5 D1 6 D1 7 D2 8 D2 D1 D2 G1 G2 S1 S2 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current TA=25℃ TA=70℃ Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.
