AO4906 Description
SMD Type Dual N-Channel MOSFET AO4906 (KO4906) MOSFET.

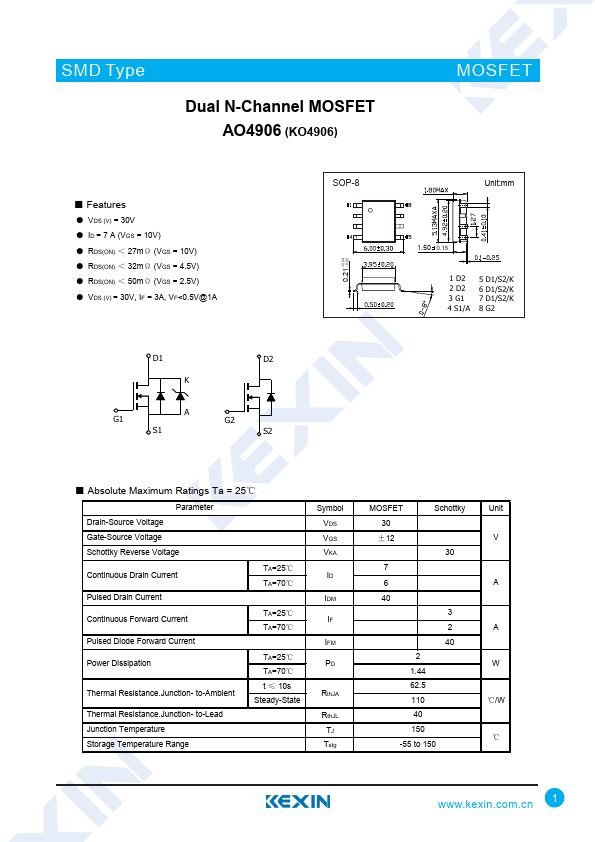

AO4906 Key Features
- VDS (V) = 30V
- ID = 7 A (VGS = 10V)
- RDS(ON) ＜ 27mΩ (VGS = 10V)
- RDS(ON) ＜ 32mΩ (VGS = 4.5V)
- RDS(ON) ＜ 50mΩ (VGS = 2.5V)
- VDS (V) = 30V, IF = 3A, VF<0.5V@1A
- Part: AO4906
- Manufacturer: Kexin Semiconductor
- Size: 1.56 MB
