AO4924 - Dual N-Channel MOSFET

Kexin Semiconductor

Key Features

s N-Channel 1.
VDS (V) = 30V.
ID = 9 A (VGS = 10V).
RDS(ON) ＜ 15.8mΩ (VGS = 10V).
RDS(ON) ＜ 19.5mΩ (VGS = 4.5V).

AO4924 dual n-channel mosfet by Kexin Semiconductor - Datasheet Preview

Datasheet Details

Part number	AO4924
Manufacturer	Kexin Semiconductor
File Size	1.80 MB
Description	Dual N-Channel MOSFET
Datasheet	AO4924 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
AO4924	Asymmetric Dual N-Channel MOSFET	Alpha & Omega Semiconductors
AO4922	Dual N-Channel Enhancement Mode Field Effect Transistor	Alpha & Omega Semiconductors
AO4926	Dual N-Channel Enhancement Mode Field Effect Transistor	Alpha & Omega Semiconductors
AO4928	Dual N-Channel Enhancement Mode Field Effect Transistor	Alpha & Omega Semiconductors
AO4900	Dual N-Channel MOSFET	VBsemi

Other Datasheets by Kexin Semiconductor

Part Number	Description
AO4900	Dual N-Channel MOSFET
AO4906	Dual N-Channel MOSFET
AO4912	Dual N-Channel MOSFET
AO4914	Dual N-Channel MOSFET
AO4918	Dual N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

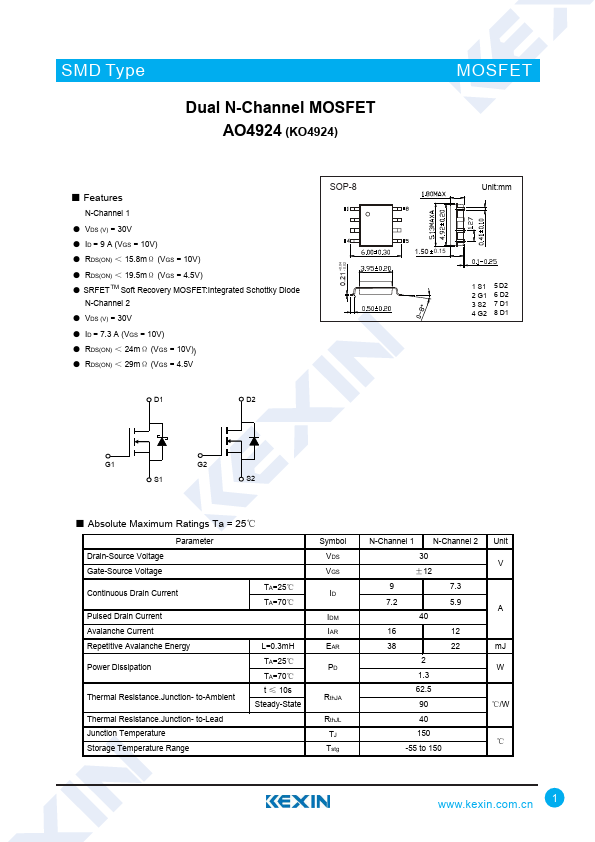

SMD Type Dual N-Channel MOSFET AO4924 (KO4924) MOSFET ■ Features N-Channel 1 ● VDS (V) = 30V ● ID = 9 A (VGS = 10V) ● RDS(ON) ＜ 15.8mΩ (VGS = 10V) ● RDS(ON) ＜ 19.5mΩ (VGS = 4.5V) ● SRFETTM Soft Recovery MOSFET:Integrated Schottky Diode N-Channel 2 ● VDS (V) = 30V ● ID = 7.3 A (VGS = 10V) ● RDS(ON) ＜ 24mΩ (VGS = 10V)) ● RDS(ON) ＜ 29mΩ (VGS = 4.5V D1 D2 +0.04 0.21 -0.02 SOP-8 Unit:mm 1.50 0.15 1 S1 2 G1 3 S2 4 G2 5 D2 6 D2 7 D1 8 D1 G1 G2 S1 S2 ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current Repetitive Avalanche Energy Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.
