AO4932 - Dual N-Channel MOSFET

Kexin Semiconductor

Key Features

s N-Channel 1.
VDS (V) = 30V.
ID = 11 A (VGS = 10V).
RDS(ON) ＜ 12.5mΩ (VGS = 10V).
RDS(ON) ＜ 15mΩ (VGS = 4.5V).

AO4932 dual n-channel mosfet by Kexin Semiconductor - Datasheet Preview

Datasheet Details

Part number	AO4932
Manufacturer	Kexin Semiconductor
File Size	2.17 MB
Description	Dual N-Channel MOSFET
Datasheet	AO4932 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
AO4932	Asymmetric Dual N-Channel MOSFET	Alpha & Omega Semiconductors
AO4932	30V Dual N-Channel MOSFET	VBsemi
AO4930	30V Dual N-Channel MOSFET	VBsemi
AO4930	Dual N-Channel Enhancement Mode Field Effect Transistor	Alpha & Omega Semiconductors
AO4938	30V Dual N-Channel MOSFET	VBsemi

Other Datasheets by Kexin Semiconductor

Part Number	Description
AO4938	Dual N-Channel MOSFET
AO4900	Dual N-Channel MOSFET
AO4906	Dual N-Channel MOSFET
AO4912	Dual N-Channel MOSFET
AO4914	Dual N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

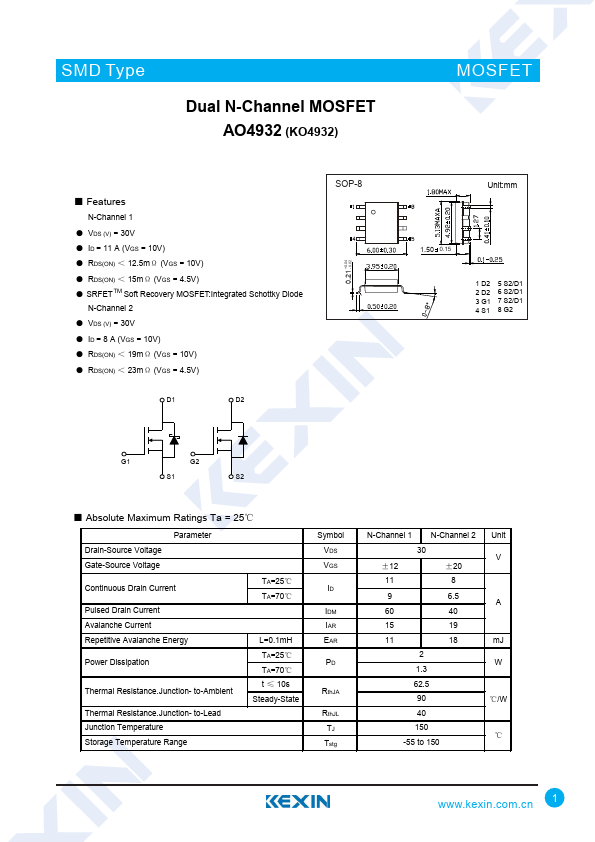

SMD Type Dual N-Channel MOSFET AO4932 (KO4932) MOSFET ■ Features N-Channel 1 ● VDS (V) = 30V ● ID = 11 A (VGS = 10V) ● RDS(ON) ＜ 12.5mΩ (VGS = 10V) ● RDS(ON) ＜ 15mΩ (VGS = 4.5V) ● SRFETTM Soft Recovery MOSFET:Integrated Schottky Diode N-Channel 2 ● VDS (V) = 30V ● ID = 8 A (VGS = 10V) ● RDS(ON) ＜ 19mΩ (VGS = 10V) ● RDS(ON) ＜ 23mΩ (VGS = 4.5V) D1 D2 +0.04 0.21 -0.02 SOP-8 Unit:mm 1.50 0.15 1 D2 2 D2 3 G1 4 S1 5 S2/D1 6 S2/D1 7 S2/D1 8 G2 G1 G2 S1 S2 ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current TA=25℃ TA=70℃ Repetitive Avalanche Energy Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.
