AO4938 - Dual N-Channel MOSFET

Key Features

  • s N-Channel 1.
  • VDS (V) = 30V.
  • ID = 8.8 A (VGS = 10V).
  • RDS(ON) ＜ 16mΩ (VGS = 10V).
  • RDS(ON) ＜ 22mΩ (VGS = 4.5V).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4938 30V Dual N-Channel MOSFET VBsemi
AO4930 30V Dual N-Channel MOSFET VBsemi
AO4930 Dual N-Channel Enhancement Mode Field Effect Transistor Alpha & Omega Semiconductors
AO4932 Asymmetric Dual N-Channel MOSFET Alpha & Omega Semiconductors
AO4932 30V Dual N-Channel MOSFET VBsemi

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4932 Dual N-Channel MOSFET
AO4900 Dual N-Channel MOSFET
AO4906 Dual N-Channel MOSFET
AO4912 Dual N-Channel MOSFET
AO4914 Dual N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

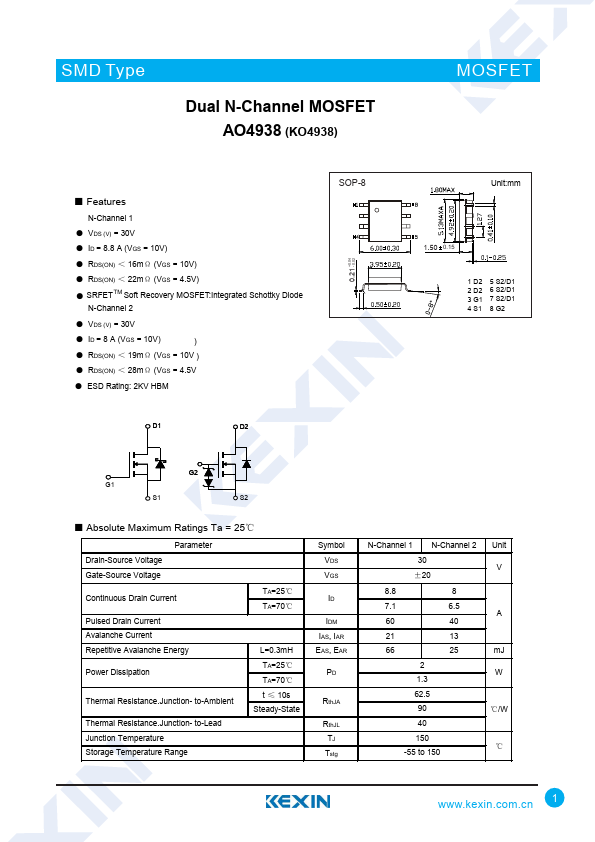

SMD Type Dual N-Channel MOSFET AO4938 (KO4938) MOSFET ■ Features N-Channel 1 ● VDS (V) = 30V ● ID = 8.8 A (VGS = 10V) ● RDS(ON) ＜ 16mΩ (VGS = 10V) ● RDS(ON) ＜ 22mΩ (VGS = 4.5V) ● SRFETTM Soft Recovery MOSFET:Integrated Schottky Diode N-Channel 2 ● VDS (V) = 30V ● ID = 8 A (VGS = 10V) ) ● RDS(ON) ＜ 19mΩ (VGS = 10V ) ● RDS(ON) ＜ 28mΩ (VGS = 4.5V ● ESD Rating: 2KV HBM D1 D2 +0.04 0.21 -0.02 SOP-8 Unit:mm 1.50 0.15 1 D2 2 D2 3 G1 4 S1 5 S2/D1 6 S2/D1 7 S2/D1 8 G2 G2 G1 S1 S2 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Avalanche Current TA=25℃ TA=70℃ Repetitive Avalanche Energy L=0.3mH Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.
