AO4952 - Dual N-Channel MOSFET

Key Features

  • s N-Channel 1.
  • VDS (V) = 30V.
  • ID = 11 A (VGS = 10V).
  • RDS(ON) ＜ 10.5mΩ (VGS = 10V).
  • RDS(ON) ＜ 15.5mΩ (VGS = 4.5V).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4952 30V Dual Asymmetric N-Channel AlphaMOS Alpha & Omega Semiconductors
AO4900 Dual N-Channel MOSFET VBsemi
AO4900 Dual N-Channel Enhancement Mode Field Effect Transistor Alpha & Omega Semiconductors
AO4900A Dual N-Channel Enhancement Mode Field Effect Transistor Alpha & Omega Semiconductors
AO4902 Dual N-Channel Enhancement Mode Field Effect Transistor Alpha & Omega Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4900 Dual N-Channel MOSFET
AO4906 Dual N-Channel MOSFET
AO4912 Dual N-Channel MOSFET
AO4914 Dual N-Channel MOSFET
AO4918 Dual N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

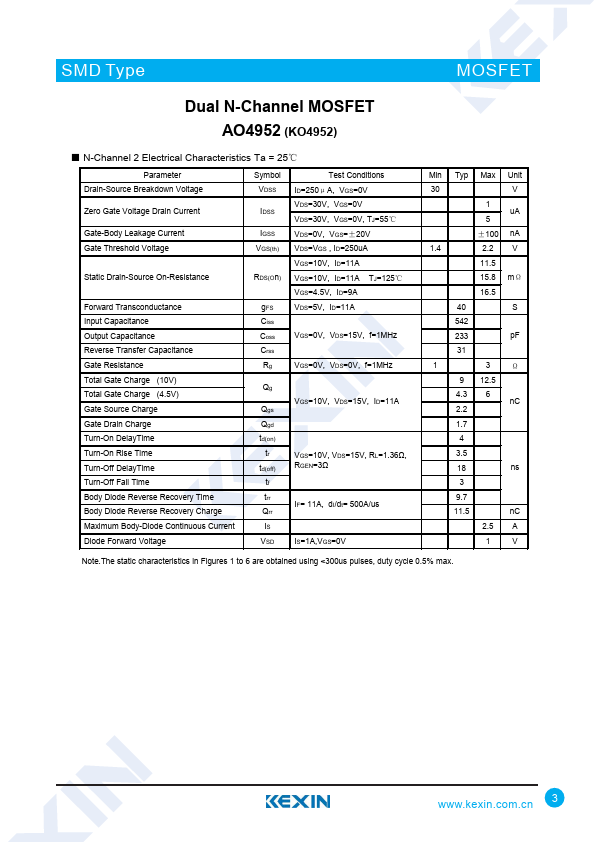

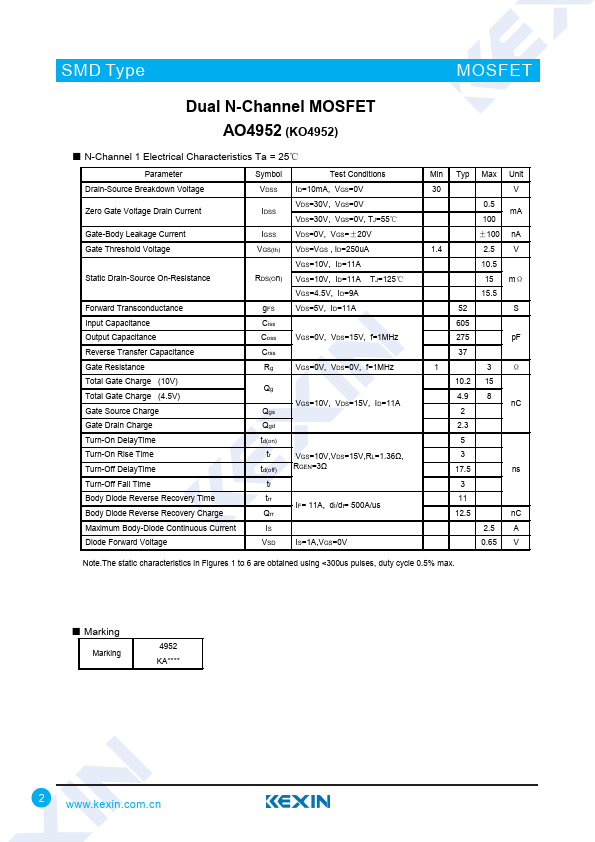

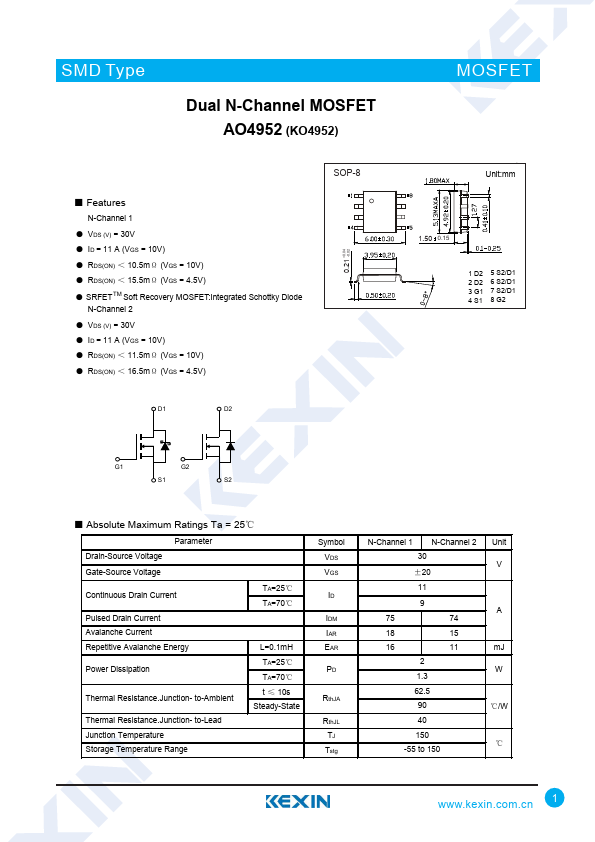

SMD Type Dual N-Channel MOSFET AO4952 (KO4952) ■ Features N-Channel 1 ● VDS (V) = 30V ● ID = 11 A (VGS = 10V) ● RDS(ON) ＜ 10.5mΩ (VGS = 10V) ● RDS(ON) ＜ 15.5mΩ (VGS = 4.5V) ● SRFETTM Soft Recovery MOSFET:Integrated Schottky Diode N-Channel 2 ● VDS (V) = 30V ● ID = 11 A (VGS = 10V) ● RDS(ON) ＜ 11.5mΩ (VGS = 10V) ● RDS(ON) ＜ 16.5mΩ (VGS = 4.5V) +0.04 0.21 -0.02 SOP-8 D1 D2 MOSFET Unit:mm 1.50 0.15 1 D2 2 D2 3 G1 4 S1 5 S2/D1 6 S2/D1 7 S2/D1 8 G2 G1 G2 S1 S2 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Avalanche Current TA=25℃ TA=70℃ Repetitive Avalanche Energy Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.
