AO6405 - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-30V.
  • ID =-5 A (VGS =-10V).
  • RDS(ON) ＜ 52mΩ (VGS =-10V).
  • RDS(ON) ＜ 87mΩ (VGS =-4.5V) D ( SOT-23-6 ) 0.4+0.1 -0.1 6 5 4 1 2 3 +0.01 -0.01 +0.2 -0.1 G S 0-0.1 +0.1 0.68 -0.1 +0.2 1.6 -0.1 +0.2 2.8 -0.1 +0.1 1.1 -0.1 0.55 0.4 MOSFET Unit: mm 0.15 +0.02 -0.02 1 Drain 4 Source 2 Drain 5 Drain 3 Gate 6 Drain.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Power D.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO6405 30V P-Channel MOSFET Alpha & Omega Semiconductors
AO6400 30V N-Channel MOSFET Alpha & Omega Semiconductors
AO6401 30V P-Channel MOSFET Alpha & Omega Semiconductors
AO6401A P-Channel MOSFET Alpha & Omega Semiconductors
AO6402 30V N-Channel MOSFET Alpha & Omega Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
AO6400 N-Channel MOSFET
AO6401 P-Channel MOSFET
AO6401A P-Channel MOSFET
AO6402 N-Channel MOSFET
AO6402A N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

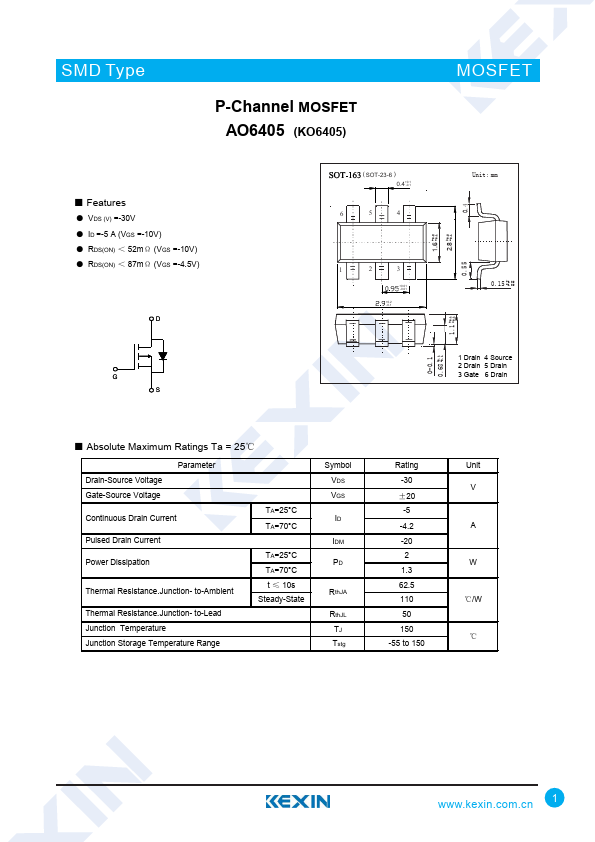

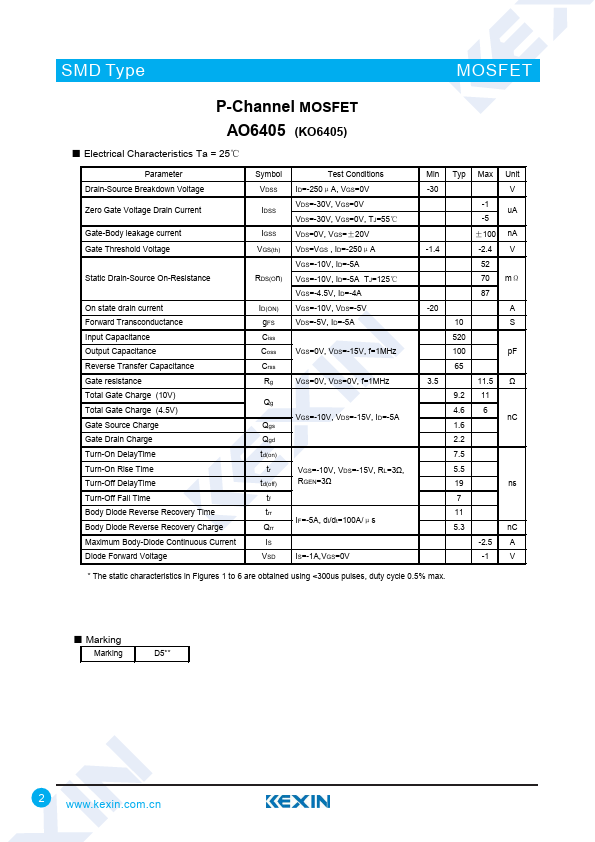

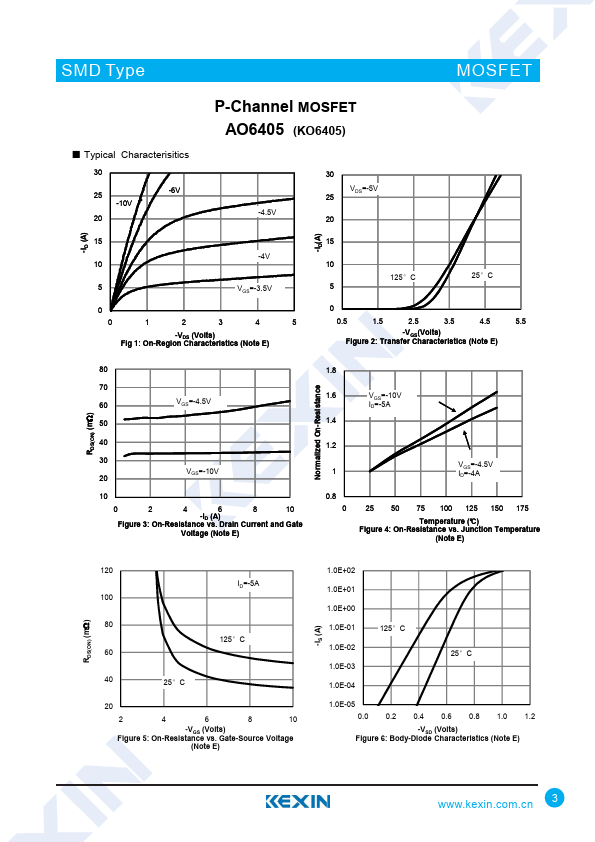

SMD Type P-Channel MOSFET AO6405 (KO6405) ■ Features ● VDS (V) =-30V ● ID =-5 A (VGS =-10V) ● RDS(ON) ＜ 52mΩ (VGS =-10V) ● RDS(ON) ＜ 87mΩ (VGS =-4.5V) D ( SOT-23-6 ) 0.4+0.1 -0.1 6 5 4 1 2 3 +0.01 -0.01 +0.2 -0.1 G S 0-0.1 +0.1 0.68 -0.1 +0.2 1.6 -0.1 +0.2 2.8 -0.1 +0.1 1.1 -0.1 0.55 0.4 MOSFET Unit: mm 0.15 +0.02 -0.02 1 Drain 4 Source 2 Drain 5 Drain 3 Gate 6 Drain ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Junction Storage Temperature Range TA=25°C TA=70°C TA=25°C TA=70°C t ≤ 10s Steady-State Symbol VDS VGS ID IDM PD RthJA RthJL TJ Tstg Rating -30 ±20 -5 -4.
