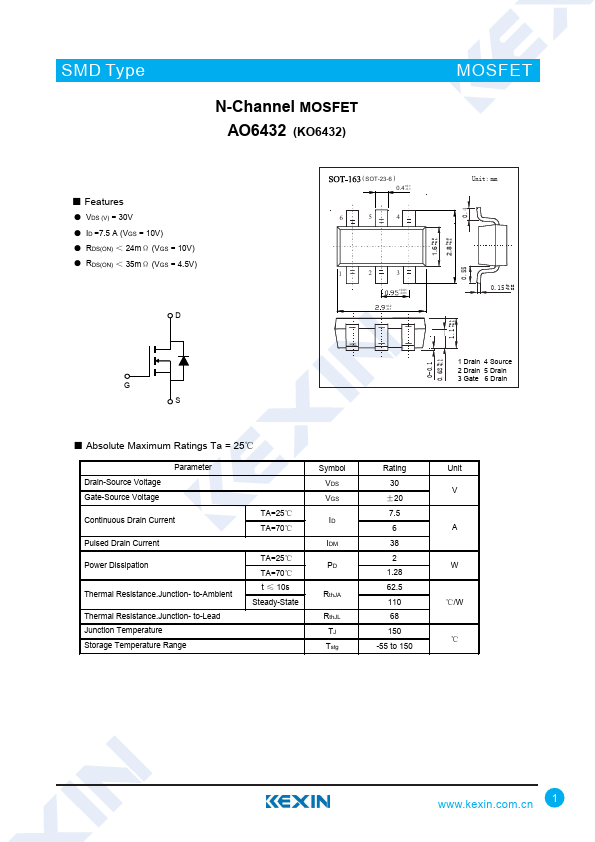

AO6432 Datasheet N-channel MOSFET

Manufacturer: Kexin Semiconductor

Overview: SMD Type N-Channel MOSFET AO6432 (KO6432) MOSFET ■.

Datasheet Details

s.
VDS (V) = 30V.
ID =7.5 A (VGS = 10V).
RDS(ON) ＜ 24mΩ (VGS = 10V).
RDS(ON) ＜ 35mΩ (VGS = 4.5V) D ( SOT-23-6 ) 0.4+0.1 -0.1 6 5 4 1 2 3 +0.01 -0.01 +0.2 -0.1 +0.2 1.6 -0.1 +0.2 2.8 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 +0.1 1.1 -0.1 G S 0-0.1 +0.1 0.68 -0.1 1 Drain 4 Source 2 Drain 5 Drain 3 Gate 6 Drain.
Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Power Dissipa.
