RDS(ON) ＜ 29mΩ (VGS = 4.5V)
DFN 2x2B Top View
D
MOSFET
Bottom View
G S.
Absolute Maximum Ratings Ta = 25℃
Drain-Source Voltage Gate-Source Voltage
Parameter
Continuous Drain Current Pulsed Drain Current
TA=25℃ TA=100℃
Power Dissipation
Thermal Resistance. Junction- to-Ambient Junction Temperature Storage Temperature Range
TA=25℃ TA=70℃ t ≤ 10s Steady-State
Symbol VDS VGS ID IDM PD
RthJA TJ Tst.
The following content is an automatically extracted verbatim text
from the original manufacturer datasheet and is provided for reference purposes only.
View original datasheet text

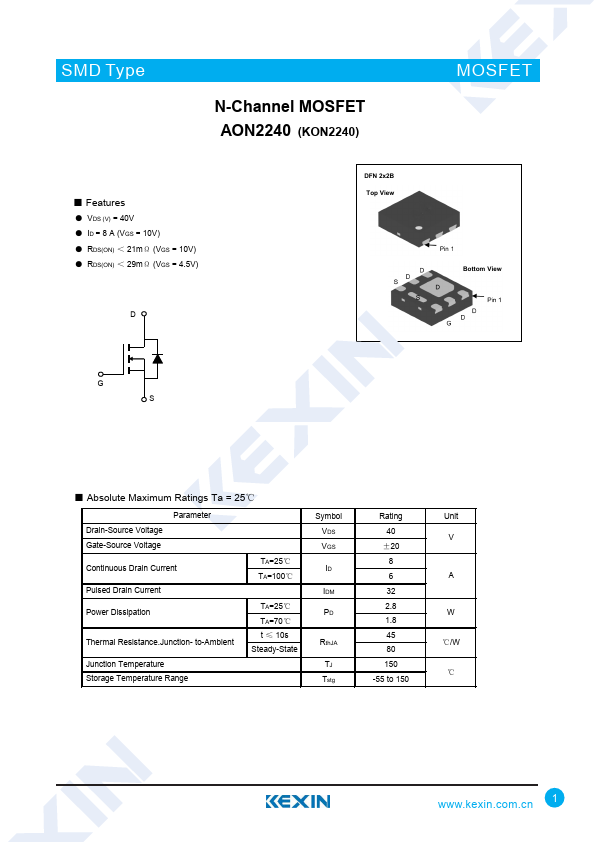

SMD Type
N-Channel MOSFET AON2240 (KON2240)
■ Features
● VDS (V) = 40V ● ID = 8 A (VGS = 10V) ● RDS(ON) ＜ 21mΩ (VGS = 10V) ● RDS(ON) ＜ 29mΩ (VGS = 4.5V)
DFN 2x2B Top View
D
MOSFET
Bottom View
G S
■ Absolute Maximum Ratings Ta = 25℃
Drain-Source Voltage Gate-Source Voltage
Parameter
Continuous Drain Current Pulsed Drain Current
TA=25℃ TA=100℃
Power Dissipation
Thermal Resistance.Junction- to-Ambient Junction Temperature Storage Temperature Range
TA=25℃ TA=70℃ t ≤ 10s Steady-State
Symbol VDS VGS ID IDM PD
RthJA TJ Tstg
Rating 40
±20 8 6 32 2.8 1.8 45 80
150 -55 to 150
Unit V
A
W ℃/W
℃

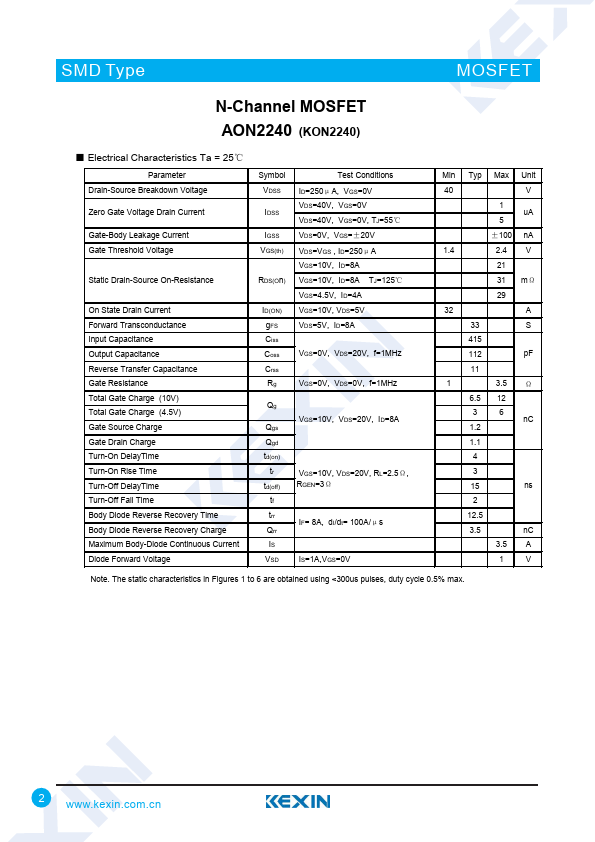

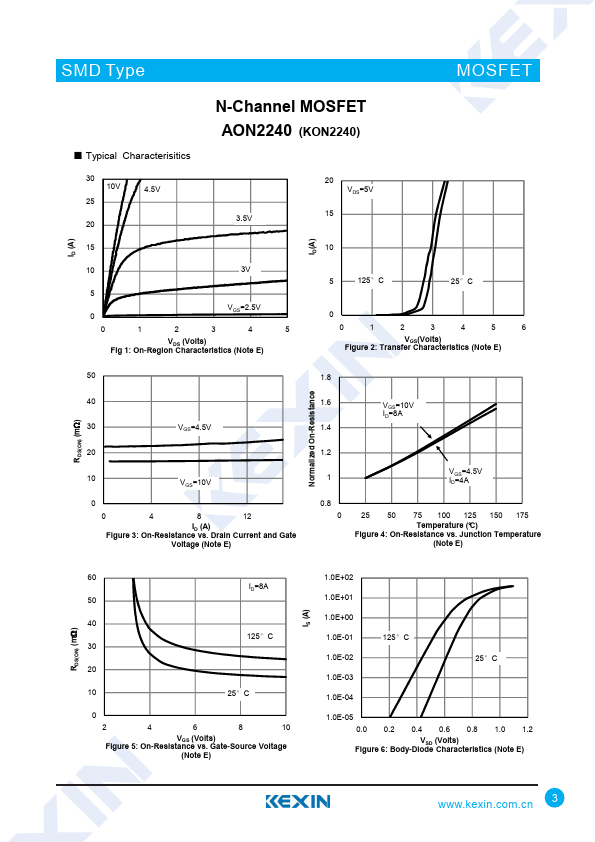

www.kexin.com.
