AP9974 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 60V.
  • ID = 68 A (VGS = 10V).
  • RDS(ON) ＜ 12mΩ (VGS = 10V).
  • RDS(ON) ＜ 15mΩ (VGS = 4.5V).
  • Single Drive Requirement D + 9.70 0.2 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30 +0.1 -0.1 0.50+0.08 -0.07 + 1.50 0.15 -0.15 + 0.15 0 .5 0 -0.15 + 0.28 1 .5 0 -0.1 0.80+0.1 -0.1 0.127 m ax 2.3 4 .60 +0.15 -0.15 0.60+ 0.1 - 0.1 + 0.25 2 .6 5 -0.1 + 5.55 0.15 -0.15 3.80 Unit: mm 1 Gate 2 Drain 3 Source G S.
  • Absolute Maximum Ratings Ta = 25℃ Parameter D.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AP9974AGH-HF N-CHANNEL ENHANCEMENT MODE POWER MOSFET Advanced Power Electronics
AP9974AGP N-Channel 60V MOSFET VBsemi
AP9974AGP-HF N-CHANNEL ENHANCEMENT MODE POWER MOSFET Advanced Power Electronics
AP9974BGP N-CHANNEL ENHANCEMENT MODE POWER MOSFET Advanced Power Electronics
AP9974GH-HF N-CHANNEL ENHANCEMENT MODE POWER MOSFET Advanced Power Electronics

Other Datasheets by Kexin Semiconductor

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

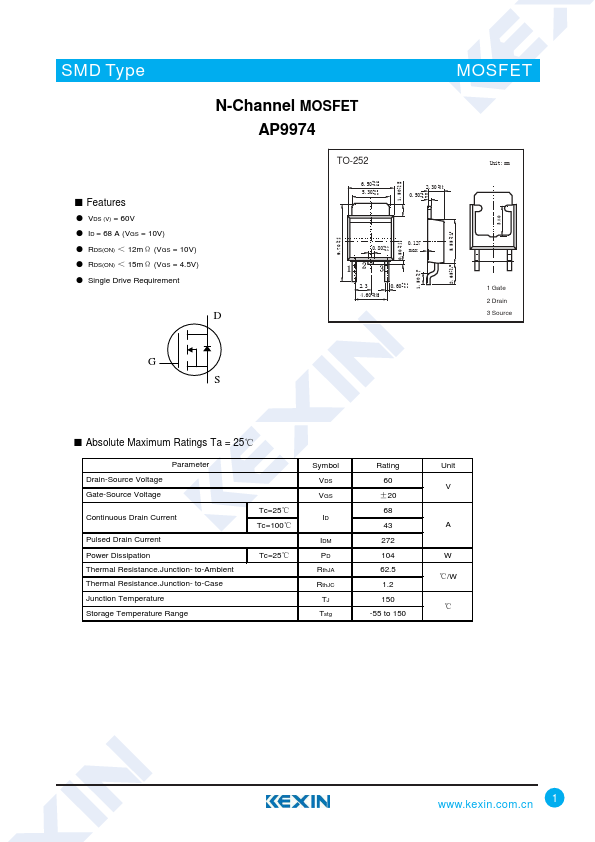

SMD Type MOSFET N-Channel MOSFET AP9974 ■ Features ● VDS (V) = 60V ● ID = 68 A (VGS = 10V) ● RDS(ON) ＜ 12mΩ (VGS = 10V) ● RDS(ON) ＜ 15mΩ (VGS = 4.5V) ● Single Drive Requirement D + 9.70 0.2 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30 +0.1 -0.1 0.50+0.08 -0.07 + 1.50 0.15 -0.15 + 0.15 0 .5 0 -0.15 + 0.28 1 .5 0 -0.1 0.80+0.1 -0.1 0.127 m ax 2.3 4 .60 +0.15 -0.15 0.60+ 0.1 - 0.1 + 0.25 2 .6 5 -0.1 + 5.55 0.15 -0.15 3.80 Unit: mm 1 Gate 2 Drain 3 Source G S ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.
