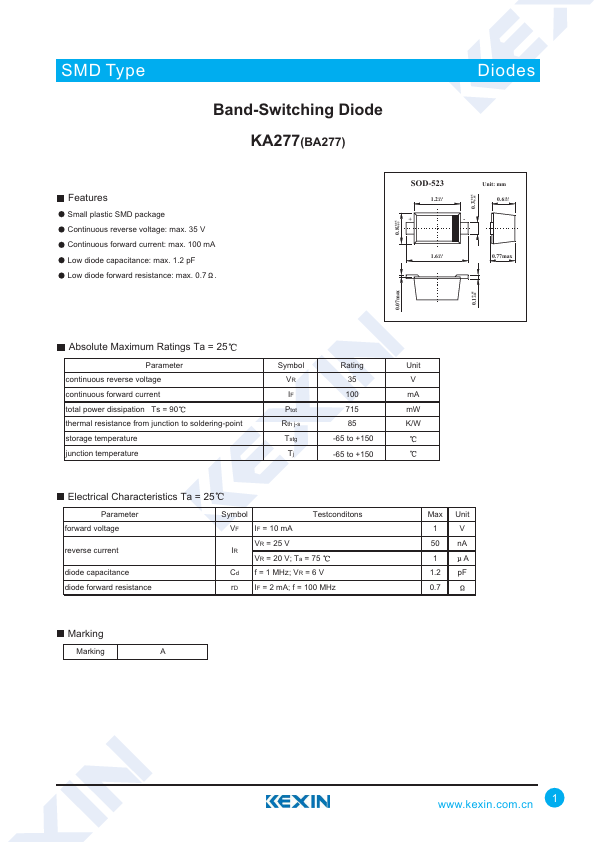

BA277 Datasheet PDF

FEATURES

Small plastic SMD package Continuous reverse voltage: max. 35 V Continuous forward current: max. 100 mA Low diode capacitance: max. 1.2 pF Low diode forward resistance: max. 0.7 . +0.05 0.8 -0.05 SOD-523 1.2+0.1 -0.1 + +0.05 0.3 -0.05 Unit: mm 0.6+0.1 -0.1 - 1.6+0.1 -0.1 0.77max +0.05 0.1 -0.02 0.07max

ABSOLUTE MAXIMUM RATINGS

Ta = 25 Parameter continuous reverse voltage continuous forward current total power dissipation Ts = 90 thermal resistance from junction to soldering-point storage temperature junction temperature Symbol VR IF Ptot Rth j-s Tstg Tj Rating 35 100 715 85 -65 to +150 -65 to +150 Unit V mA mW K/W

ELECTRICAL CHARACTERISTICS

Ta = 25 Parameter forward voltage reverse current diode capacitance diode forward resistance Symbol Testconditons VF IF = 10 mA VR = 25 V IR VR = 20 V; Ta = 75 Cd f = 1 MHz; VR = 6 V rD IF = 2 mA; f = 100 MHz Max Unit 1 V 50 nA 1 A 1.2 pF 0.7 Marking Marking A 1
