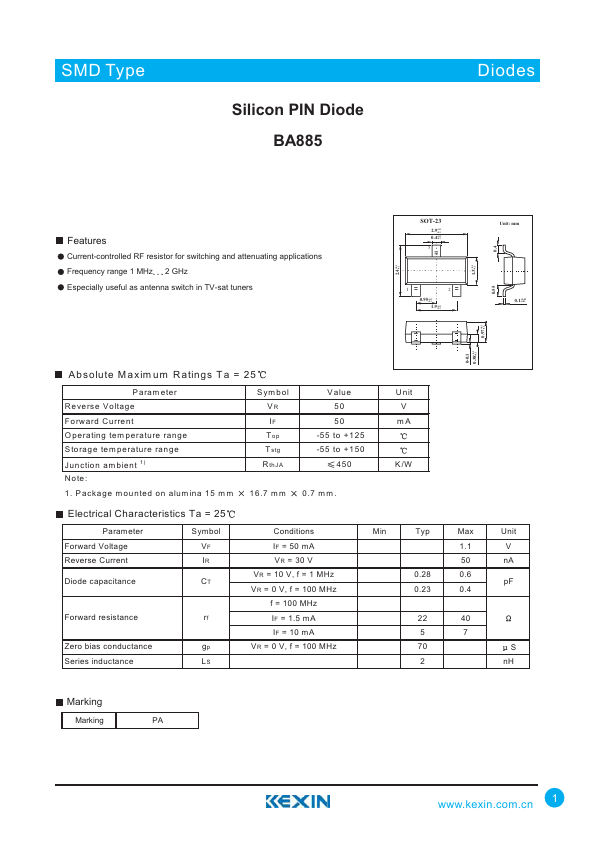

BA885
BA885 is Silicon PIN Diode manufactured by Kexin Semiconductor.
SMD Type
Silicon PIN Diode BA885
Diodes
Features
Current-controlled RF resistor for switching and attenuating applications Frequency range 1 MHz 2 GHz Especially useful as antenna switch in TV-sat tuners
+0.1 2.4 -0.1
SOT-23
2.9+0.1 -0.1
0.4+0.1 -0.1
0.95+0.1 -0.1 1.9+0.1 -0.1
+0.1 1.3 -0.1
Unit: mm 0.1+0.05
-0.01
+0.1 0.97 -0.1
Absolute M axim um R atings Ta = 25
Param eter Reverse Voltage Forward Current O perating tem perature range Storage tem perature range Junction am bient 1) N o te : 1. Package m ounted on alum ina 15 m m
Sym bol VR IF Top T stg
R thJA
16.7 m m
V a lu e 50 50
-55 to +125 -55 to +150
0.7 m m .
U n it V mA
K /W
Electrical...
