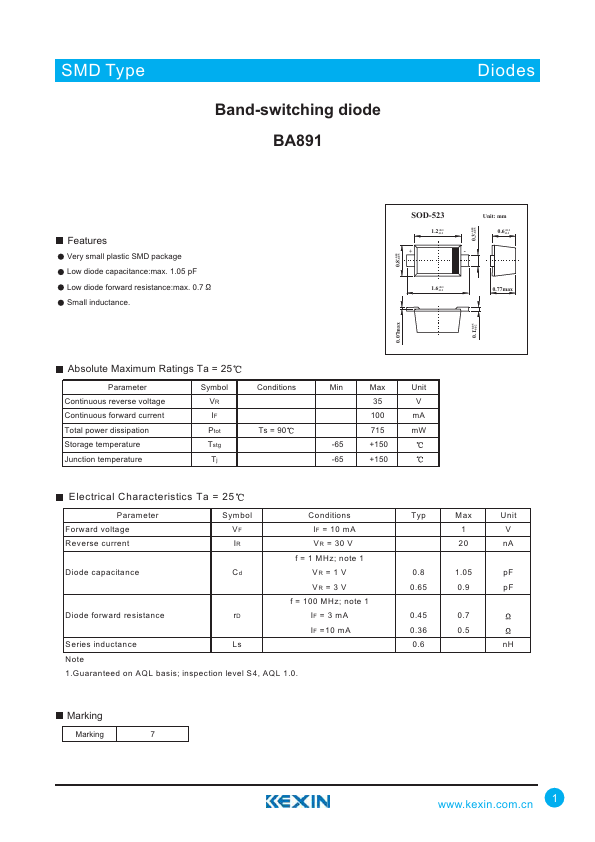

BA891 Datasheet PDF

FEATURES

Very small plastic SMD package Low diode capacitance:max. 1.05 pF Low diode forward resistance:max. 0.7 Small inductance. +0.05 0.8 -0.05 SOD-523 1.2+0.1 -0.1 + +0.05 0.3 -0.05 Unit: mm 0.6+0.1 -0.1 - 1.6+0.1 -0.1 0.77max +0.05 0.1 -0.02 0.07max

ABSOLUTE MAXIMUM RATINGS

Ta = 25 Parameter Continuous reverse voltage Continuous forward current Total power dissipation Storage temperature Junction temperature Symbol VR IF Ptot Tstg Tj Conditions Ts = 90 Min Max Unit 35 V 100 mA 715 mW -65 +150 -65 +150

ELECTRICAL CHARACTERISTICS

Ta = 25 P aram eter Symbol Conditions Forward voltage VF IF = 10 mA Reverse current IR VR = 30 V f = 1 MHz; note 1 Diode capacitance Cd VR = 1 V VR = 3 V f = 100 MHz; note 1 Diode forward resistance rD IF = 3 mA IF =10 mA Series inductance Ls Note 1.Guaranteed on AQL basis; inspection level S4, AQL 1.0. Typ 0.8 0.65 0.45 0.36 0.6 Max 1 20 1.05 0.9 0.7 0.5 Unit V nA pF pF nH Marking Marking 7 1 SMD Type Diodes 2
