Kexin Electronics BAP1321-03
General Purpose PIN Diode
| Part No. | BAP1321-03 |
|---|---|
| Datasheet | BAP1321-03 Download |
| Manufacturer | Kexin Electronics |
| Description | General Purpose PIN Diode |
| Buy | Stock & Price |
FEATURES
● High voltage, current controlled● RF resistor for RF attenuators and switches
● Low diode capacitance
● Low diode forward resistance
● Very low series inductance
● For applications up to 3 GHz. SOD-323 1.7+0.1 -0.1 Unit: mm 0.85+0.05 -0.05 +0.05 0.3 -0.05 +0.1 1.3 -0.1 2.6+0.1 -0.1 0.475 0.375 1.0max +0.05 0.1 -0.02
●
ABSOLUTE MAXIMUM RATINGS
Ta = 25℃ Parameter Continuous reverse voltage Continuous forward current Total power dissipation TS = 90℃ Storage temperature Junction temperature Thermal resistance from junction to soldering point Symbol VR IF Ptot Tstg Tj Rth( j-s) Rating 60 100 500 -65 to +150 150 120 Unit V mA mW ℃ ℃ ℃/W 1 SMD Type Diodes BAP1321-03●

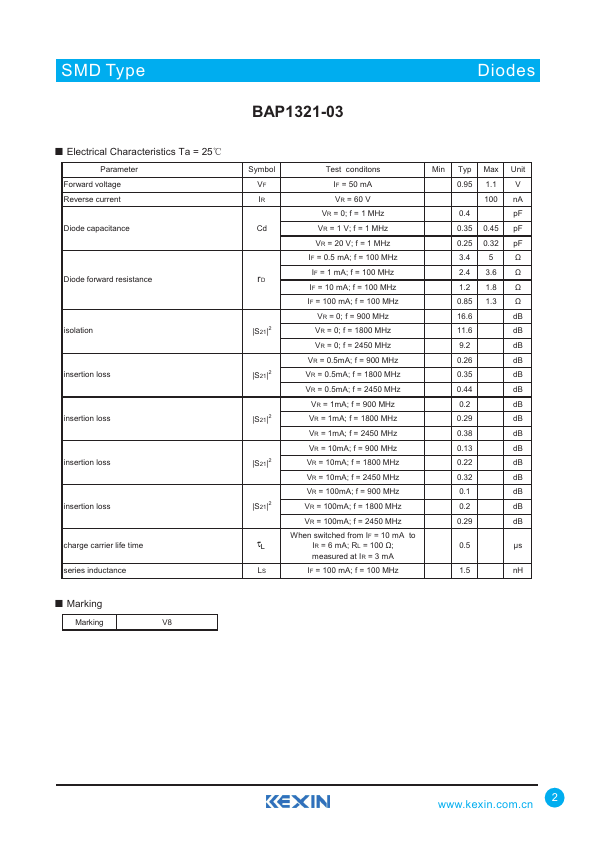

ELECTRICAL CHARACTERISTICS
Ta = 25℃ Parameter Forward voltage Reverse current Diode capacitance Diode forward resistance isolation insertion loss insertion loss insertion loss insertion loss charge carrier life time series inductance Symbol VF IR Cd rD |S21|2 |S21|2 |S21|2 |S21|2 |S21|2 τL LS Test conditons IF = 50 m...
