Kexin Electronics BAP50-04
General Purpose PIN Diode
| Part No. | BAP50-04 |
|---|---|
| Datasheet | BAP50-04 Download |
| Manufacturer | Kexin Electronics |
| Description | General Purpose PIN Diode |
| Buy | Stock & Price |

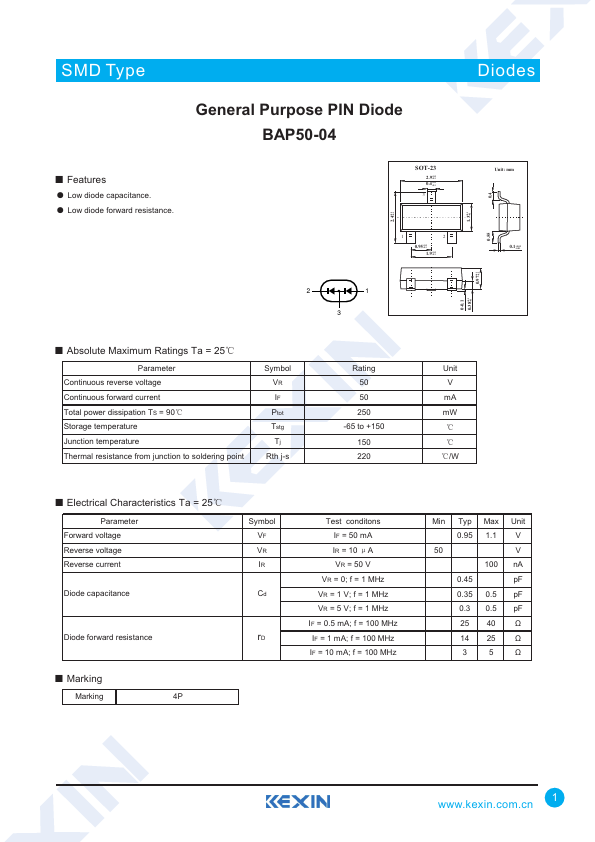

FEATURES
● Low diode capacitance.● Low diode forward resistance. +0.1 2.4 -0.1 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 1 2 0.95+0.1 -0.1 1.9+0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1+0.05 -0.01 +0.1 0.97 -0.1 0-0.1 +0.1 0.38 -0.1 2 1 3
●
ABSOLUTE MAXIMUM RATINGS
Ta = 25℃ Parameter Continuous reverse voltage Continuous forward current Total power dissipation TS = 90℃ Storage temperature Junction temperature Thermal resistance from junction to soldering point Symbol VR IF Ptot Tstg Tj Rth j-s Rating 50 50 250 -65 to +150 150 220 Unit V mA mW ℃ ℃ ℃/W●
ELECTRICAL CHARACTERISTICS
Ta = 25℃ Parameter Forward voltage Reverse voltage Reverse current Diode capacitance Symbol VF VR IR Cd Diode forward resistance rD● Marking Marking 4P Test conditons IF = 50 mA IR = 10 μA VR = 50 V VR = 0; f = 1 MHz VR = 1 V; f = 1 MHz VR = 5 V; f = 1 MHz IF = 0.5 mA; f = 100 MHz IF = 1 mA; f = 100 MHz IF = 10 mA; f = 100 MHz Min Typ Max Unit 0.95 1.1 V 50 V 100 nA 0.45 pF 0.35 0.5 pF 0.3 0.5 pF 25 40 Ω 14 25 Ω 3...
