BAP63-03
BAP63-03 is General Purpose PIN Diode manufactured by Kexin Semiconductor.
SMD Type

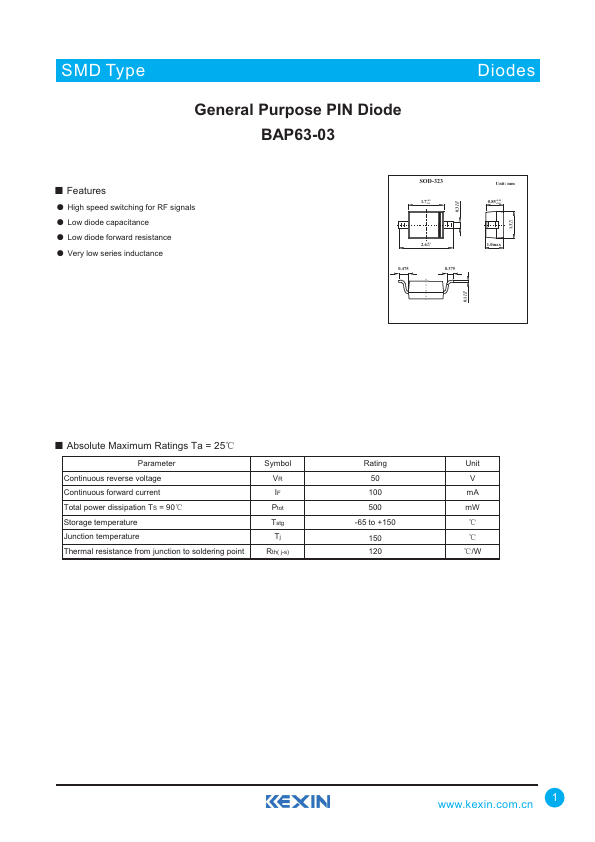

General Purpose PIN Diode BAP63-03
Diodes
- Features
- High speed switching for RF signals
- Low diode capacitance
- Low diode forward resistance
- Very low series inductance
SOD-323
1.7+0.1 -0.1
Unit: mm 0.85+0.05
-0.05
+0.05 0.3 -0.05
+0.1 1.3 -0.1
2.6+0.1 -0.1
1.0max
+0.05 0.1 -0.02
-...
