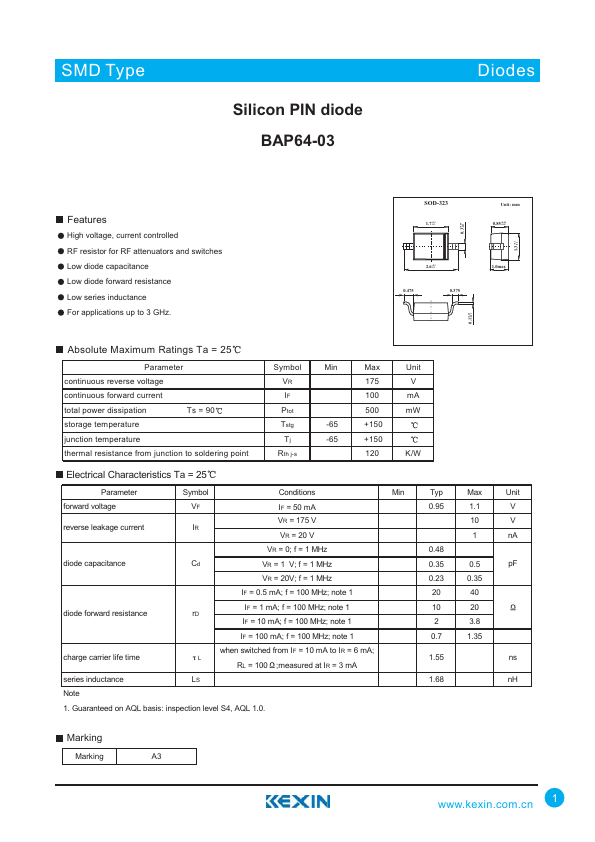

BAP64-03 Datasheet PDF

FEATURES

High voltage, current controlled RF resistor for RF attenuators and switches Low diode capacitance Low diode forward resistance Low series inductance For applications up to 3 GHz. SOD-323 1.7+0.1 -0.1 Unit: mm 0.85+0.05 -0.05 +0.05 0.3 -0.05 +0.1 1.3 -0.1 2.6+0.1 -0.1 0.475 0.375 1.0max +0.05 0.1 -0.02

ABSOLUTE MAXIMUM RATINGS

Ta = 25 Parameter continuous reverse voltage continuous forward current total power dissipation Ts = 90 storage temperature junction temperature thermal resistance from junction to soldering point Symbol Min VR IF Ptot Tstg -65 Tj -65 Rth j-s Max Unit 175 V 100 mA 500 mW +150 +150 120 K/W

ELECTRICAL CHARACTERISTICS

Ta = 25 Parameter Symbol Conditions Min Typ Max Unit forward voltage VF IF = 50 mA 0.95 1.1 V reverse leakage current IR VR = 175 V VR = 20 V 10 V 1 nA VR = 0; f = 1 MHz 0.48 diode capacitance Cd VR = 1 V; f = 1 MHz 0.35 0.5 pF VR = 20V; f = 1 MHz 0.23 0.35 IF = 0.5 mA; f = 100 MHz; note 1 20 40 IF = 1 mA; f = 100 MHz; note 1 diode forward res...
