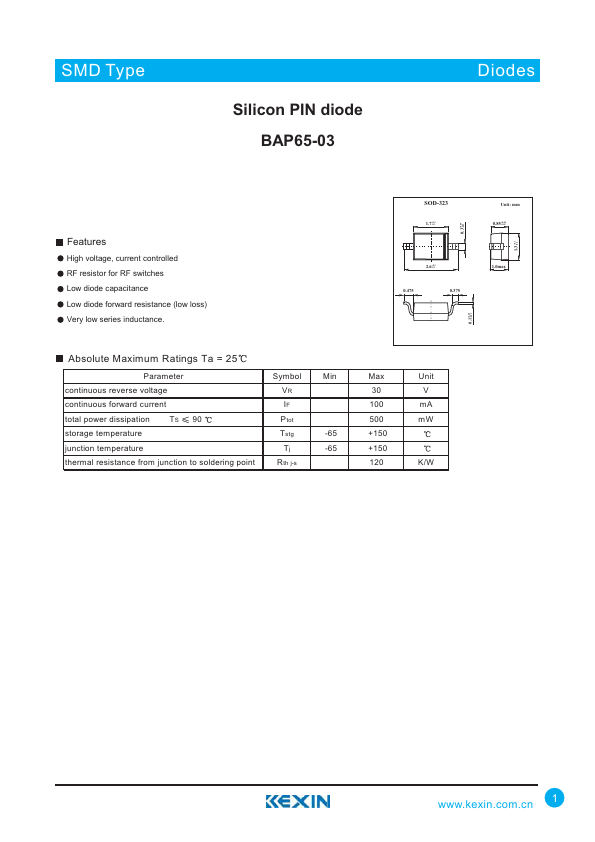

BAP65-03
Features
High voltage, current controlled RF resistor for RF switches Low diode capacitance Low diode forward resistance (low loss) Very low series inductance.
SOD-323
1.7+0.1 -0.1
Unit: mm 0.85+0.05
-0.05
+0.05 0.3 -0.05
+0.1 1.3 -0.1
2.6+0.1 -0.1
1.0max
+0.05 0.1 -0.02
Absolute Maximum Ratings Ta = 25
Parameter
Symbol
Min continuous reverse voltage
VR continuous forward current
IF total power dissipation TS 90
Ptot storage temperature
Tstg
-65 junction temperature
Tj
-65 thermal resistance from junction to soldering point
Rth j-s
Max 30 100 500 +150 +150 120
Unit V m A m W
K/W
.kexin..cn 1
SMD Type
Diodes

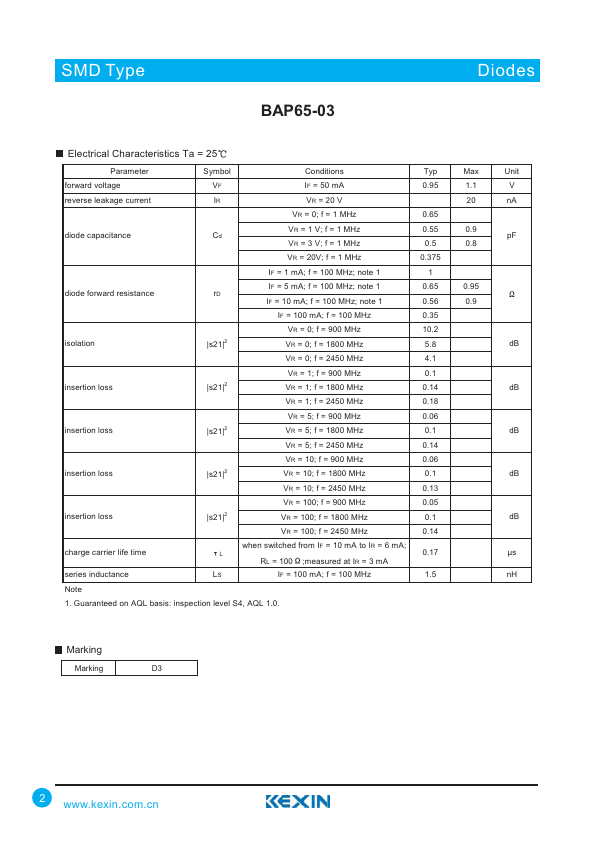

Electrical Characteristics Ta = 25
Parameter
Symbol
Conditions
Typ
Max
Unit forward voltage
IF = 50 m...
