Kexin Electronics BAR50-03W
Silicon PIN Diodes
| Part No. | BAR50-03W |
|---|---|
| Datasheet | BAR50-03W Download |
| Manufacturer | Kexin Electronics |
| Description | Silicon PIN Diodes |
| Buy | Stock & Price |
FEATURES

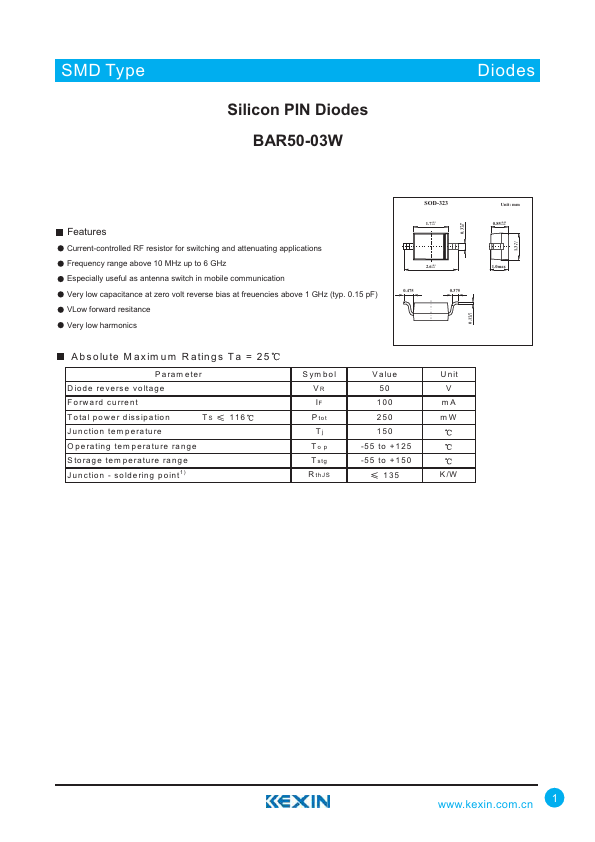

Current-controlled RF resistor for switching and attenuating applications Frequency range above 10 MHz up to 6 GHz Especially useful as antenna switch in mobile communication Very low capacitance at zero volt reverse bias at freuencies above 1 GHz (typ. 0.15 pF) VLow forward resitance Very low harmonics SOD-323 1.7+0.1 -0.1 2.6+0.1 -0.1 0.475 0.375 A bsolute M axim um R atings T a = 25 Param eter D iode reverse voltage Forward current Total pow er dissipation TS 116 Junction tem perature O perating tem perature range Storage tem perature range Junction - soldering point1) Sym bol VR IF P tot Tj To p T stg R thJS V alue 50 100 250 150 -55 to +125 -55 to +150 135 U nit V mA mW K /W +0.05 0.1 -0.02 +0.05 0.3 -0.05 +0.1 1.3 -0.1 Unit: mm 0.85+0.05 -0.05 1.0max 1 SMD Type BAR50-03W DiodesELECTRICAL CHARACTERISTICS

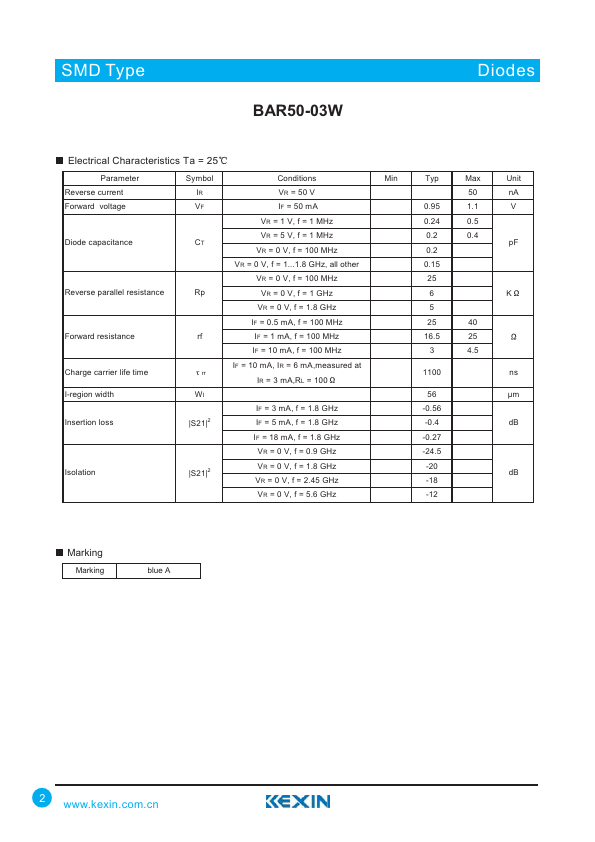

Ta = 25 Parameter Symbol Conditions Min Typ Max Unit Reverse current IR VR = 50 V 50 nA Forward voltage VF IF = 50 mA 0.95 1.1 V VR = 1 V, f = 1 MHz 0.24 0.5 Diode capac...
