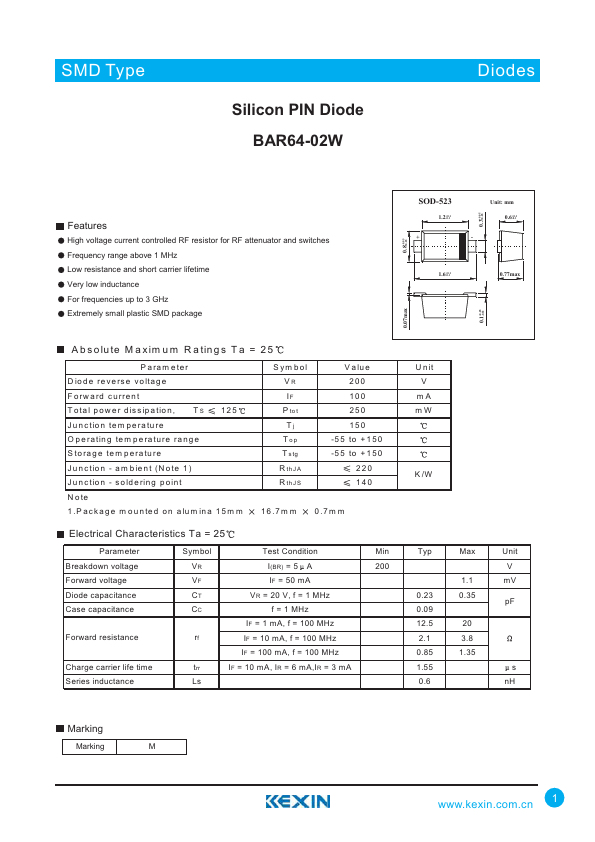

BAR64-02W Datasheet PDF

FEATURES

High voltage current controlled RF resistor for RF attenuator and switches Frequency range above 1 MHz Low resistance and short carrier lifetime Very low inductance For frequencies up to 3 GHz Extremely small plastic SMD package +0.05 0.8 -0.05 SOD-523 1.2+0.1 -0.1 + +0.05 0.3 -0.05 Unit: mm 0.6+0.1 -0.1 - 1.6+0.1 -0.1 0.77max +0.05 0.1 -0.02 0.07max A bsolute M axim um R atings T a = 25 P aram eter D iode reverse voltage Forward current T otal pow er dissipation, T S 125 Junction tem perature O perating tem perature range S torage tem perature Junction - am bient (N ote 1) Junction - soldering point N ote 1.P ackage m ounted on alum ina 15m m Sym bol VR IF P tot Tj Top T stg R thJA R thJS V alue 200 100 250 150 -55 to +150 -55 to +150 220 140 16.7m m 0.7m m U nit V mA mW K /W

ELECTRICAL CHARACTERISTICS

Ta = 25 Parameter Breakdown voltage Forward voltage Diode capacitance Case capacitance Forward resistance Charge carrier life time Series inductance Symbol Test Condition Min T...
