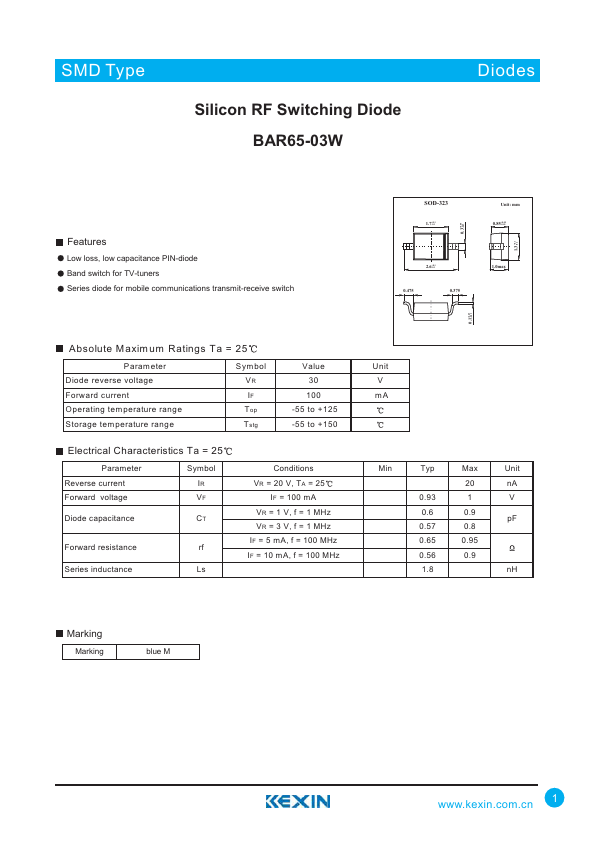

BAR65-03W
BAR65-03W is Silicon RF Switching Diode manufactured by Kexin Semiconductor.
SMD Type
Silicon RF Switching Diode BAR65-03W
Diodes
Features
Low loss, low capacitance PIN-diode Band switch for TV-tuners Series diode for mobile munications transmit-receive switch
SOD-323
1.7+0.1 -0.1
Unit: mm 0.85+0.05
-0.05
+0.05 0.3 -0.05
+0.1 1.3 -0.1
2.6+0.1 -0.1
1.0max
+0.05 0.1 -0.02
Absolute Maxim um Ratings Ta = 25
P aram eter Diode reverse voltage Forward current Operating temperature range Storage temperature range
Sym bol VR IF Top Tstg
Value 30 100
-55 to +125 -55 to +150
Electrical Characteristics Ta = 25
Parameter Reverse current Forward voltage
Symbol IR VF
Diode capacitance
Forward resistance rf
Series inductance
Ls
Conditions...
