BAR65-07
BAR65-07 is Silicon RF Switching Diode manufactured by Kexin Semiconductor.

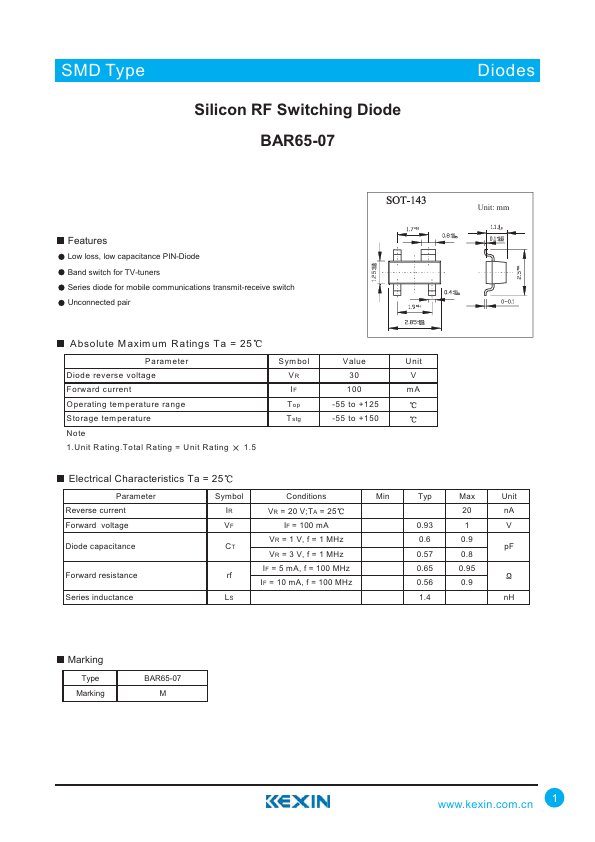

SMD Type
Silicon RF Switching Diode BAR65-07
Diodes
Features
Low loss, low capacitance PIN-Diode Band switch for TV-tuners Series diode for mobile munications transmit-receive switch Unconnected pair
Unit: mm
Absolute Maxim um Ratings Ta = 25
Param eter Diode reverse voltage Forward current Operating tem perature range Storage tem perature Note 1.Unit Rating.Total Rating = Unit Rating 1.5
Sym bol VR IF Top T stg
V a lu e 30 100
-55 to +125 -55 to +150
Unit V mA
Electrical Characteristics Ta = 25
Parameter Reverse current Forward voltage Diode capacitance
Forward resistance Series inductance
Symbol
Conditions
Min
Typ
Max
Unit
VR = 20 V;TA = 25
20 nA
IF = 100...
