Kexin Electronics BAS16H
Switching Diodes
| Part No. | BAS16H |
|---|---|
| Datasheet | BAS16H Download |
| Manufacturer | Kexin Electronics |
| Description | Switching Diodes |
| Buy | Stock & Price |
FEATURES

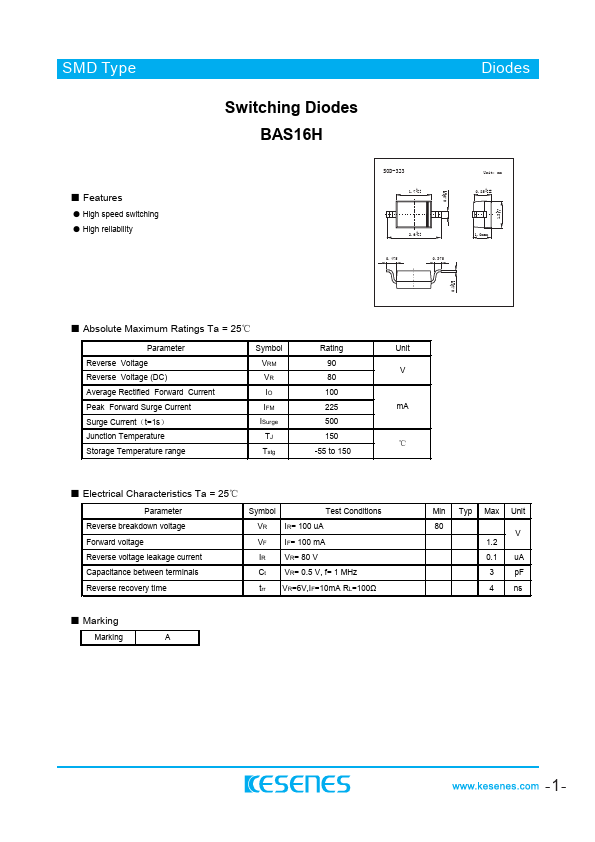

● High speed switching● High reliability Switching Diodes BAS16H SOD-323 1.7 +0.1 -0.1 Diodes Unit: mm 0.85 +0.05 -0.05 +0.05 0.3 -0.05 +0.1 1.3 -0.1 2.6 +0.1 -0.1 0.475 0.375 1.0max + 0.1 0.05 -0.02
●
ABSOLUTE MAXIMUM RATINGS
Ta = 25℃ Parameter Symbol Rating Unit Reverse Voltage Reverse Voltage (DC) VRM 90 V VR 80 Average Rectified Forward Current IO 100 Peak Forward Surge Current IFM 225 mA Surge Current（t=1s） ISurge 500 Junction Temperature Storage Temperature range TJ 150 ℃ Tstg -55 to 150●
ELECTRICAL CHARACTERISTICS
Ta = 25℃ Parameter Reverse breakdown voltage Forward voltage Reverse voltage leakage current Capacitance between terminals Reverse recovery time Symbol Test Conditions VR IR= 100 uA VF IF= 100 mA IR VR= 80 V Ct VR= 0.5 V, f= 1 MHz trr VR=6V,IF=10mA RL=100Ω● Marking Marking A Min Typ Max Unit 80 V 1.2 0.1 uA 3 pF 4 ns -1- SMD Type Diodes Switching Diodes BAS16H REVERSE CURRENT:IR(uA) FORWARD CURRENT:IF(mA)

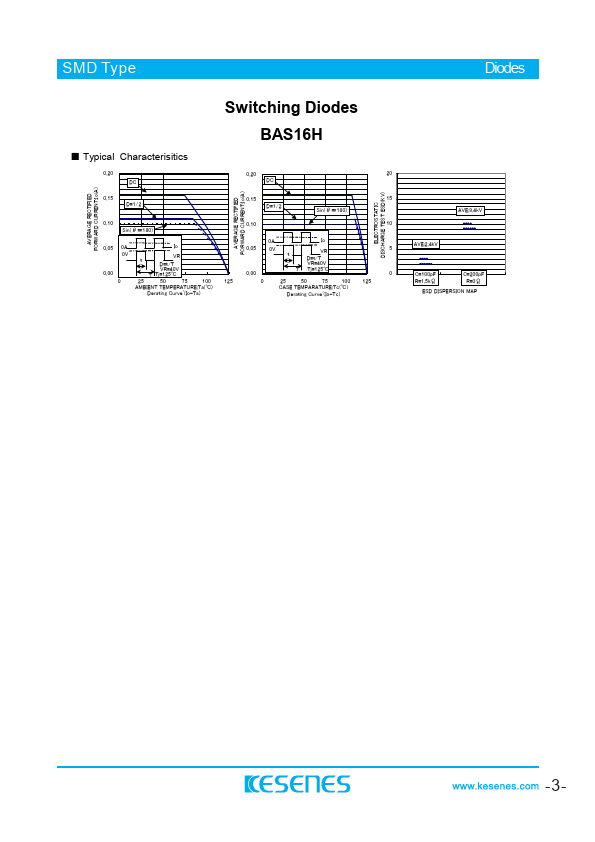

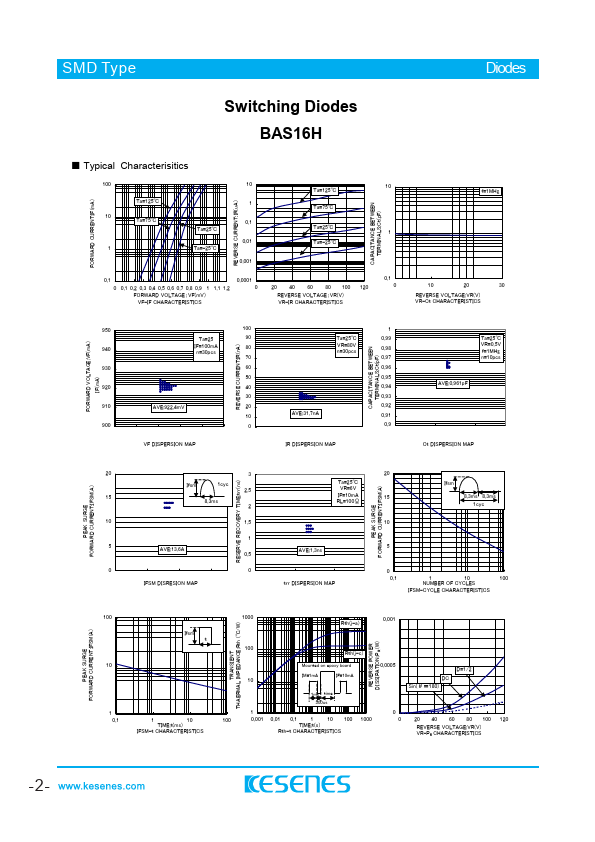

● Typical Characterisitics 100 10 Ta=125℃ 10 Ta=75℃...
