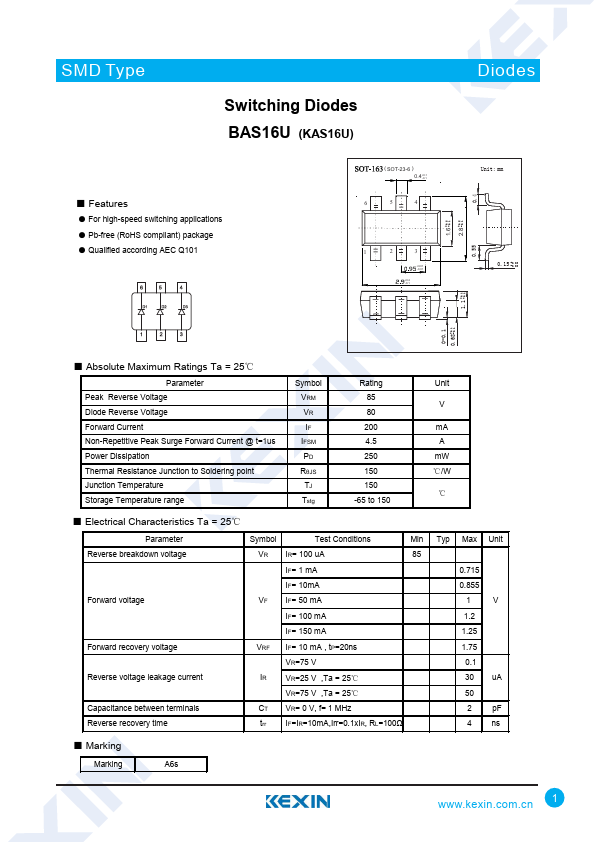

Kexin Electronics BAS16U
Switching Diodes
| Part No. | BAS16U |
|---|---|
| Datasheet | BAS16U Download |
| Manufacturer | Kexin Electronics |
| Description | Switching Diodes |
| Buy | Stock & Price |
FEATURES
● For high-speed switching applications● Pb-free (RoHS compliant) package
● Qualified according AEC Q101 ( SOT-23-6 ) 0.4+0.1 -0.1 6 5 4 1 2 3 +0.01 -0.01 +0.2 -0.1 +0.2 1.6 -0.1 +0.2 2.8 -0.1 0.55 0.4 Diodes Unit: mm 0.15 +0.02 -0.02 +0.1 1.1 -0.1 0-0.1 +0.1 0.68 -0.1
●
ABSOLUTE MAXIMUM RATINGS
Ta = 25℃ Parameter Peak Reverse Voltage Diode Reverse Voltage Forward Current Non-Repetitive Peak Surge Forward Current @ t=1us Power Dissipation Thermal Resistance Junction to Soldering point Junction Temperature Storage Temperature range Symbol VRM VR IF IFSM PD RθJS TJ Tstg Rating 85 80 200 4.5 250 150 150 -65 to 150 Unit V mA A mW ℃/W ℃●
ELECTRICAL CHARACTERISTICS
Ta = 25℃ Parameter Reverse breakdown voltage Forward voltage Forward recovery voltage Reverse voltage leakage current Capacitance between terminals Reverse recovery time Symbol Test Conditions Min VR IR= 100 uA 85 IF= 1 mA IF= 10mA VF IF= 50 mA IF= 100 mA IF= 150 mA VRF IF= 10 mA , tP=20ns VR=75 V IR VR=25 V ,Ta = 25℃ V...
