Kexin Electronics BAS20H
Switching Diode
| Part No. | BAS20H |
|---|---|
| Datasheet | BAS20H Download |
| Manufacturer | Kexin Electronics |
| Description | Switching Diode |
| Buy | Stock & Price |
FEATURES
● Fast Switching Speed● Surface Mount PackageIdeally Suited for Automatic Insertion
● High Conductance
● For General Purpose Switching
APPLICATIONS

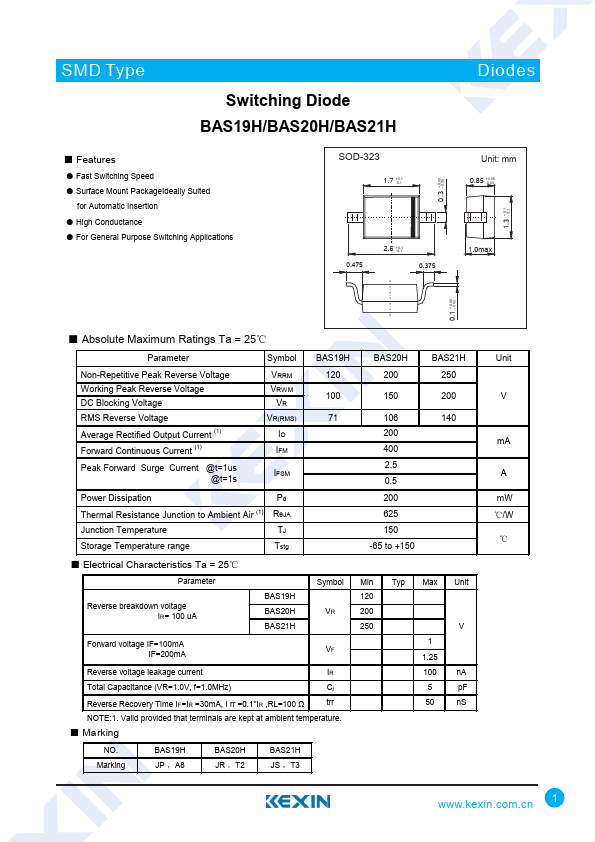

SOD-323 1.7 +0.1 -0.1 0.475 2.6 +0.1 -0.1 0.375 + 0.3 0.05 - 0.05 +0.1 1.3 -0.1 Diodes Unit: mm 0.85 +0.05 -0.05 1.0max + 0.1 0.05 - 0.02●
ABSOLUTE MAXIMUM RATINGS
Ta = 25℃ Parameter Symbol BAS19H BAS20H BAS21H Non-Repetitive Peak Reverse Voltage VRRM 120 200 250 Working Peak Reverse Voltage DC Blocking Voltage VRWM 100 150 200 VR RMS Reverse Voltage VR(RMS) 71 106 140 Average Rectified Output Current (1) IO 200 Forward Continuous Current (1) IFM 400 Peak Forward Surge Current @t=1us @t=1s IFSM 2.5 0.5 Power Dissipation Pd Thermal Resistance Junction to Ambient Air (1) RθJA Junction Temperature TJ Storage Temperature range Tstg 200 625 150 -65 to +150●

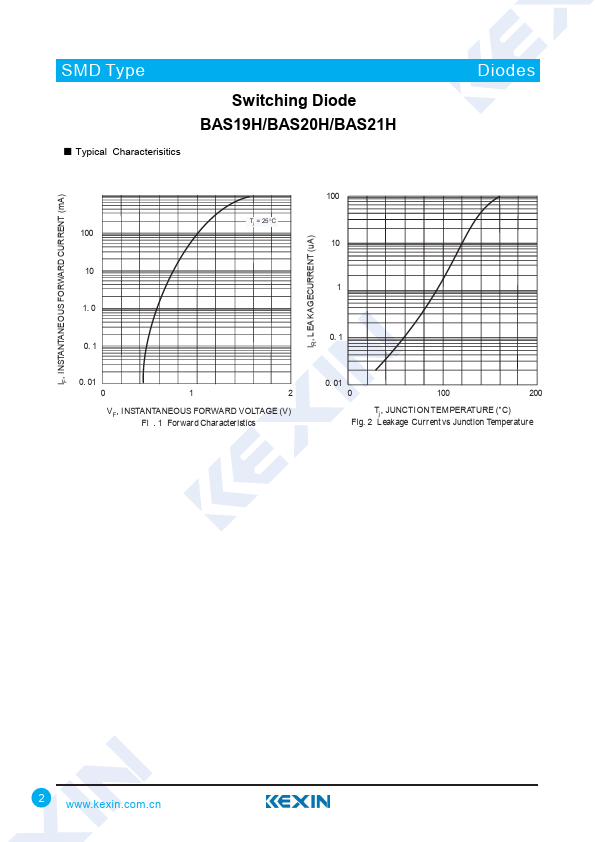

ELECTRICAL CHARACTERISTICS
