BAS21DW5T1 Datasheet | Kexin Semiconductor

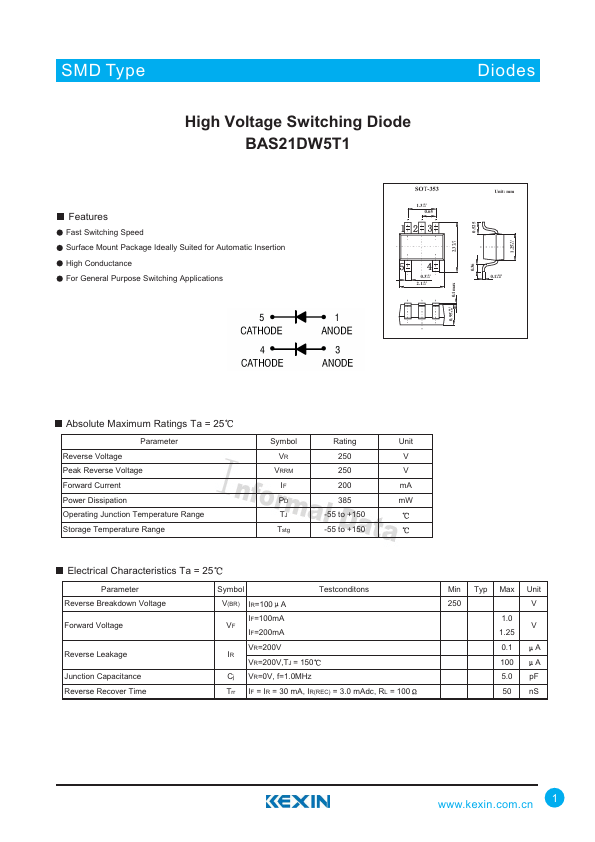

Features Fast Switching Speed Surface Mount Package Ideally Suited for Automatic Insertion High Conductance For General Purpose Switching Applications SOT-353 1.3+0.1 -0.1 0.65 Unit: mm +0.15 2.3 -0.15 0.3+0.1 -0.1 2.1+0.1 -0.1 0.1+0.05 -0.02 +0.1 1.25 -0.1 0.1max +0.05 0.95 -0.05 Absolute Maximum Ratings Ta = 25 Parameter Reverse Voltage Peak Reverse Voltage Forward Current Power Dissipation Operating Junction Temperature Range Storage Temperature Range Symbol Rating Unit VRRM 200 m A 385 m W -55 to +150 Tstg -55 to +150 Electrical Characteristics Ta = 25 Parameter Reverse Breakdown Voltage Forward Voltage Reverse Leakage Junction Capacitance Reverse Recover Time Symbol Testconditons V(BR) IR=100 A IF=100m A VF IF=200m A VR=200V IR VR=200V,TJ =...
