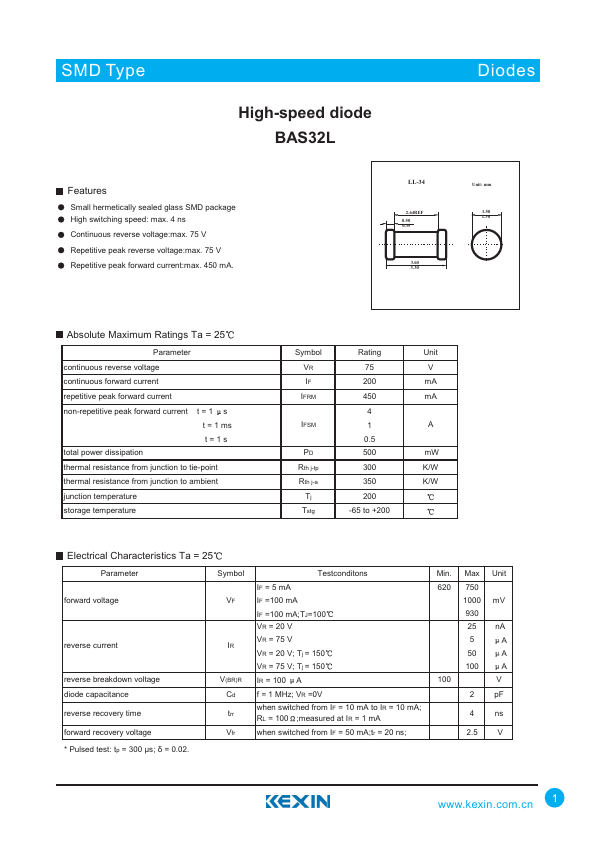

BAS32L Datasheet PDF

FEATURES

Small hermetically sealed glass SMD package High switching speed: max. 4 ns Continuous reverse voltage:max. 75 V Repetitive peak reverse voltage:max. 75 V Repetitive peak forward current:max. 450 mA. LL-34 2.64REF 0.50 0.35 3.60 3.30 Diodes Unit: mm 1.50 1.30

ABSOLUTE MAXIMUM RATINGS

Ta = 25 Parameter continuous reverse voltage continuous forward current repetitive peak forward current non-repetitive peak forward current t = 1 s t = 1 ms t=1s total power dissipation thermal resistance from junction to tie-point thermal resistance from junction to ambient junction temperature storage temperature Symbol VR IF IFRM IFSM PD Rth j-tp Rth j-a Tj Tstg Rating 75 200 450 4 1 0.5 500 300 350 200 -65 to +200 Unit V mA mA A mW K/W K/W

ELECTRICAL CHARACTERISTICS

Ta = 25 Parameter forward voltage reverse current reverse breakdown voltage diode capacitance reverse recovery time forward recovery voltage Symbol VF IR V(BR)R Cd trr Vfr Testconditons IF = 5 mA IF =100 mA IF =100 mA;TJ=100 VR = 2...
