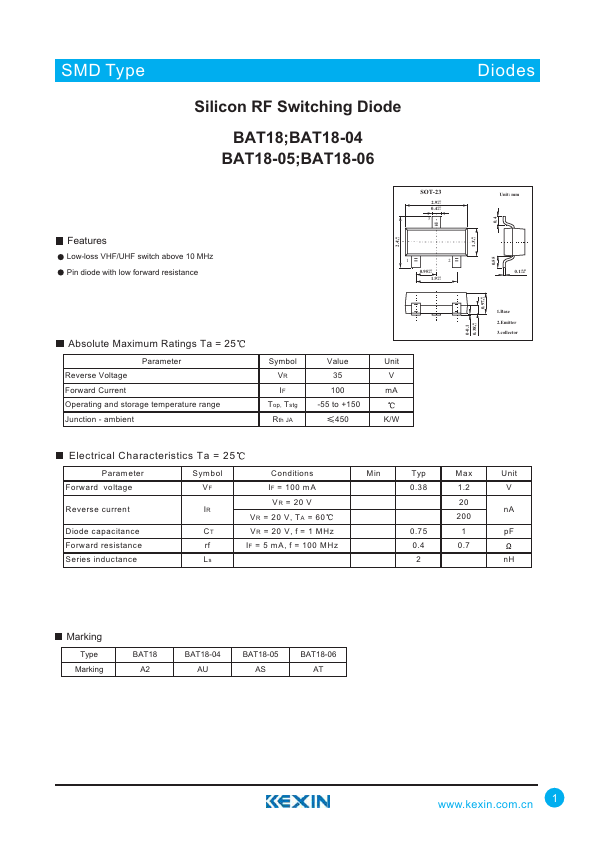

BAT18-04
BAT18-04 is Silicon RF Switching Diode manufactured by Kexin Semiconductor.
- Part of the BAT18 comparator family.
- Part of the BAT18 comparator family.
Features
Low-loss VHF/UHF switch above 10 MHz Pin diode with low forward resistance
+0.1 2.4 -0.1
SOT-23
2.9+0.1 -0.1
0.4+0.1 -0.1
0.95+0.1 -0.1 1.9+0.1 -0.1
+0.1 1.3 -0.1
Unit: mm 0.1+0.05
-0.01
+0.1 0.97 -0.1
Absolute Maximum Ratings Ta = 25
Parameter Reverse Voltage Forward Current Operating and storage temperature range Junction
- ambient
Symbol VR IF
Top, Tstg Rth JA
Value 35 100
-55 to +150 450
Unit V m A
K/W
0-0.1 +0.1 0.38
-0.1
1.Base 2.Emitter 3.collector
Electrical Characteristics Ta = 25
P aram eter Forward voltage
Reverse current
Diode capacitance Forward resistance Series inductance
Symbol
Conditions
M in
Typ
Max
Unit
IF = 100 m...
