Kexin Electronics BAT254
Schottky barrier diode
| Part No. | BAT254 |
|---|---|
| Datasheet | BAT254 Download |
| Manufacturer | Kexin Electronics |
| Description | Schottky barrier diode |
| Buy | Stock & Price |
FEATURES

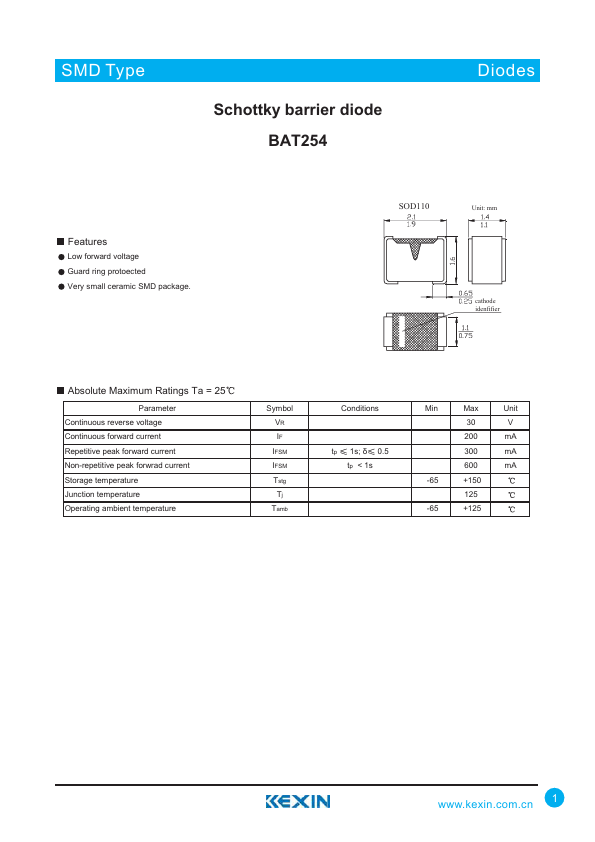

Low forward voltage Guard ring protoected Very small ceramic SMD package. SOD110 Unit: mm cathode idenfifierABSOLUTE MAXIMUM RATINGS

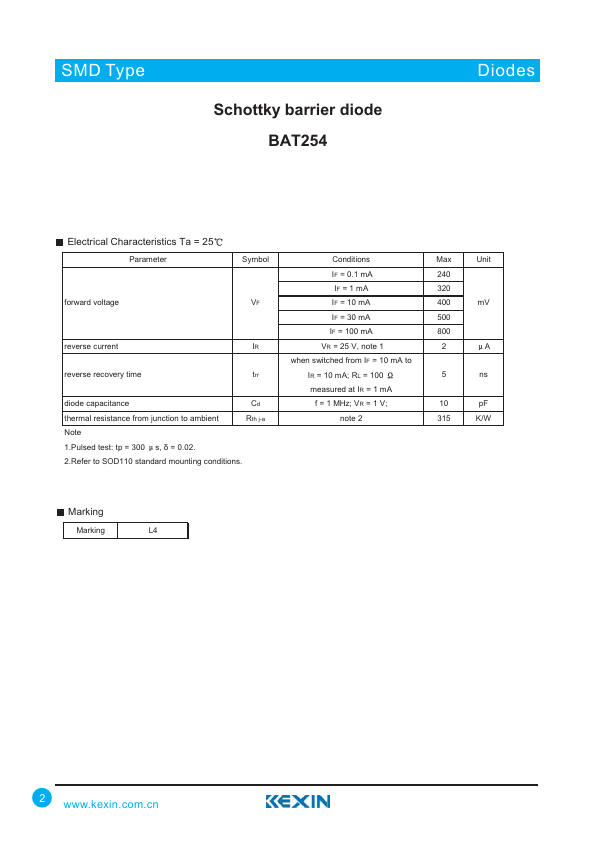

Ta = 25 Parameter Continuous reverse voltage Continuous forward current Repetitive peak forward current Non-repetitive peak forwrad current Storage temperature Junction temperature Operating ambient temperature Symbol VR IF IFSM IFSM Tstg Tj Tamb Conditions tp 1s; ä 0.5 tp < 1s Min Max Unit 30 V 200 mA 300 mA 600 mA -65 +150 125 -65 +125 1 SMD Type Schottky barrier diode BAT254 DiodesELECTRICAL CHARACTERISTICS
