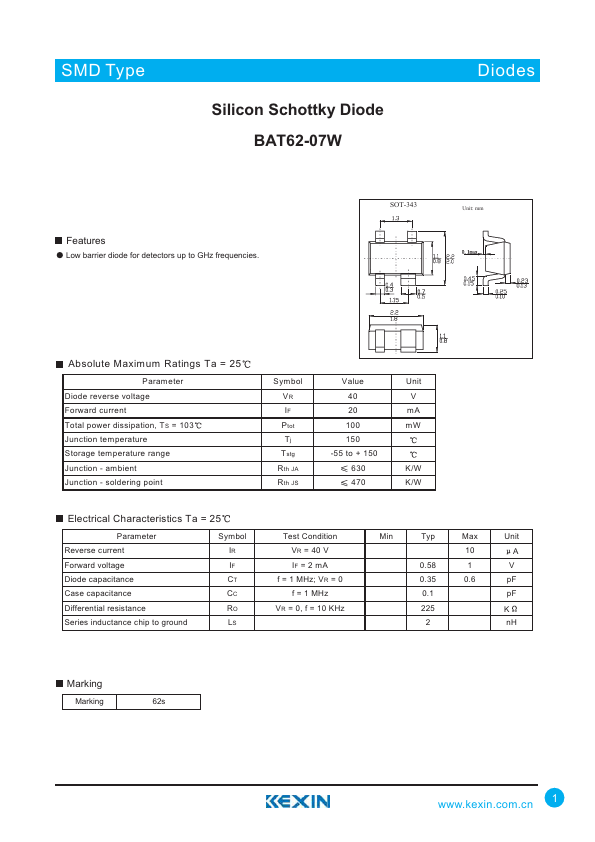

BAT62-07W Datasheet Silicon Schottky Doide

Manufacturer: Kexin Semiconductor

Overview: SMD Type Silicon Schottky Diode BAT62-07W Diodes.

Key Features

  • Low barrier diode for detectors up to GHz frequencies. SOT-343 Unit: mm Absolute Maximum Ratings Ta = 25 P aram eter Diode reverse voltage Forward current Total power dissipation, TS = 103 Junction temperature Storage temperature range Junction - ambient Junction - soldering point Symbol VR IF Ptot Tj Tstg Rth JA Rth JS Value 40 20 100 150 -55 to + 150 630 470 Unit V mA mW K/W K/W Electrical Characteristics Ta = 25 Parameter Reverse current Forward voltage Diode capacitance Case capacita.
