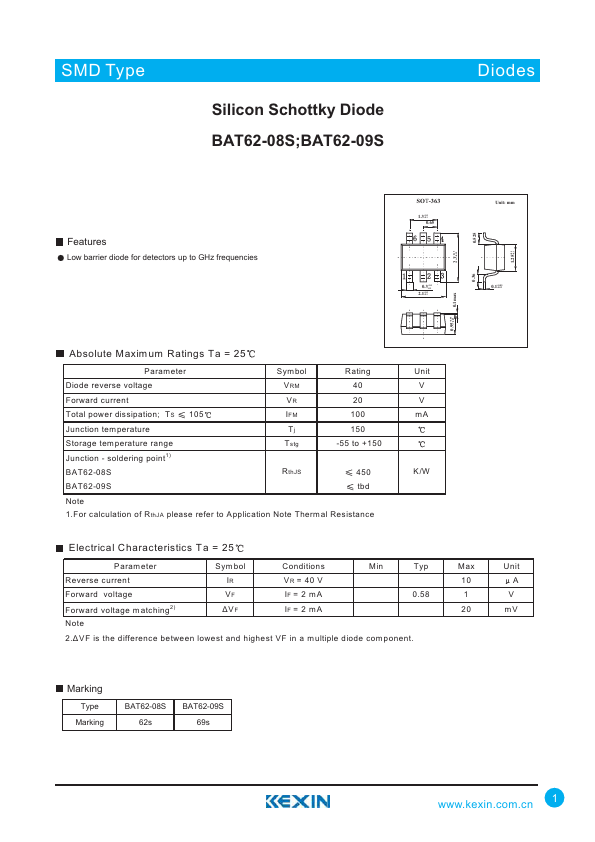

BAT62-08S Datasheet Silicon Schottky Doide

Manufacturer: Kexin Semiconductor

Overview: SMD Type Silicon Schottky Diode BAT62-08S;BAT62-09S Diodes.

Datasheet Details

Low barrier diode for detectors up to GHz frequencies SOT-363 1.3+0.1 -0.1 0.65 Unit: mm 0.525 +0.15 2.3 -0.15 0.36 0.3+0.1 -0.1 2.1+0.1 -0.1 0.1+0.05 -0.02 +0.1 1.25 -0.1 0.1max +0.05 0.95 -0.05 Absolute Maxim um Ratings Ta = 25 P aram eter Symbol Rating Diode reverse voltage VRM 40 Forward current VR 20 Total power dissipation; TS 105 IFM 100 Junction temperature Tj 150 Storage temperature range Tstg -55 to +150 Junction - soldering point1) BAT62-08S RthJS 450.
