BAT62-09S
BAT62-09S is Silicon Schottky Doide manufactured by Kexin Semiconductor.
- Part of the BAT62-08S comparator family.
- Part of the BAT62-08S comparator family.

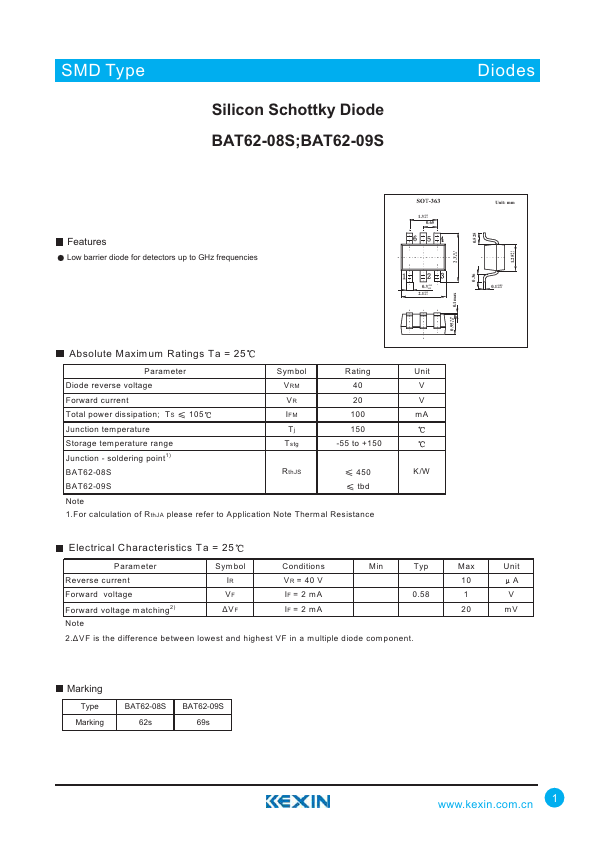

SMD Type
Silicon Schottky Diode BAT62-08S;BAT62-09S
Diodes
Features
Low barrier diode for detectors up to GHz frequencies
SOT-363
1.3+0.1 -0.1 0.65
Unit: mm
+0.15 2.3 -0.15
0.3+0.1 -0.1
2.1+0.1 -0.1
0.1+0.05 -0.02
+0.1 1.25 -0.1
0.1max
+0.05 0.95 -0.05
Absolute Maxim um Ratings Ta = 25
P aram eter
Symbol
Rating
Diode reverse voltage
Forward current
Total power dissipation; TS 105
Junction temperature
Tj
Storage temperature range
Tstg
-55 to +150
Junction
- soldering point1)
BAT62-08S...
