Kexin Electronics BAT74
Schottky Barrier Double Diode
- Max Operating Temp : 125°C
- Min Operating Temp : -65°C
Source:
Octopart
| Part No. | BAT74 |
|---|---|
| Datasheet | BAT74 Download |
| Manufacturer | Kexin Electronics |
| Description | Schottky Barrier Double Diode |
| Buy | Stock & Price |
FEATURES
Low forward voltage Guard ring protected Small SMD package. Unit: mmABSOLUTE MAXIMUM RATINGS

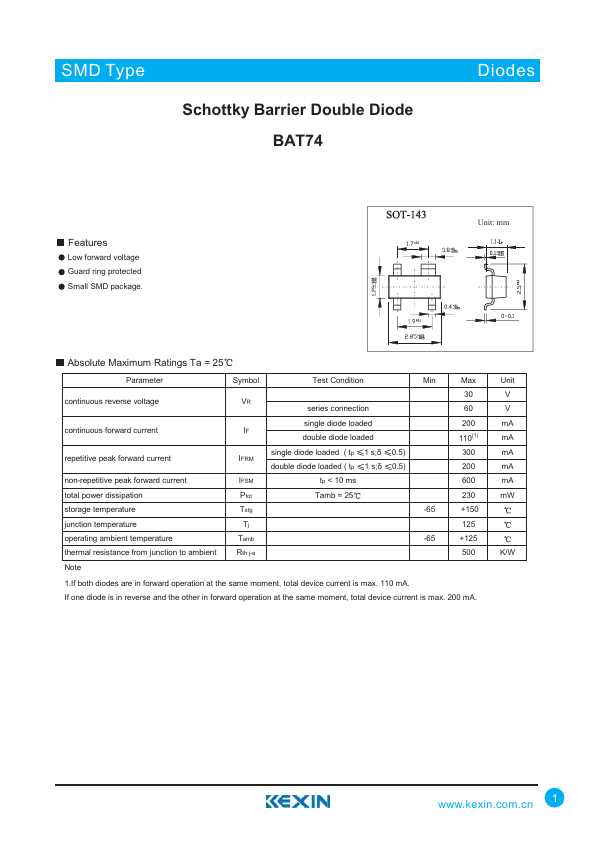

Ta = 25 Parameter Symbol Test Condition Min Max Unit continuous reverse voltage VR series connection 30 V 60 V continuous forward current repetitive peak forward current non-repetitive peak forward current single diode loaded IF double diode loaded single diode loaded ( tp 1 s;ä 0.5) IFRM double diode loaded ( tp 1 s;ä 0.5) IFSM tp < 10 ms 200 mA 110(1) mA 300 mA 200 mA 600 mA total power dissipation storage temperature Ptot Tamb = 25 Tstg 230 mW -65 +150 junction temperature Tj 125 operating ambient temperature thermal resistance from junction to ambient Tamb Rth j-a -65 +125 500 K/W Note 1.If both diodes are in forward operation at the same moment, total device current is max. 110 mA. If one diode is in reverse and the other in forward operation at the same moment, total device current is max. 200 mA. 1 SMD Type Diodes BAT74ELECTRICAL CHARACTERISTICS

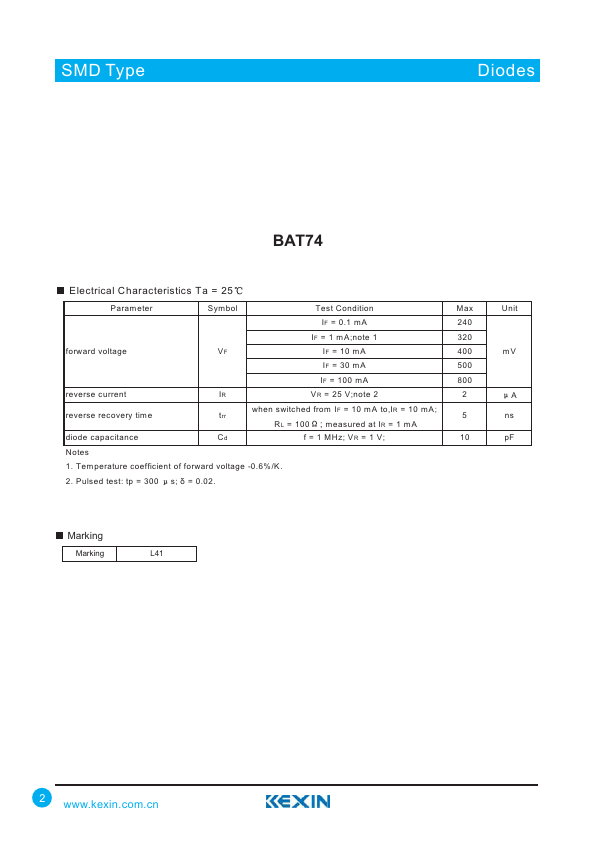

Ta = 25 P aram eter Sym bol Tes...
